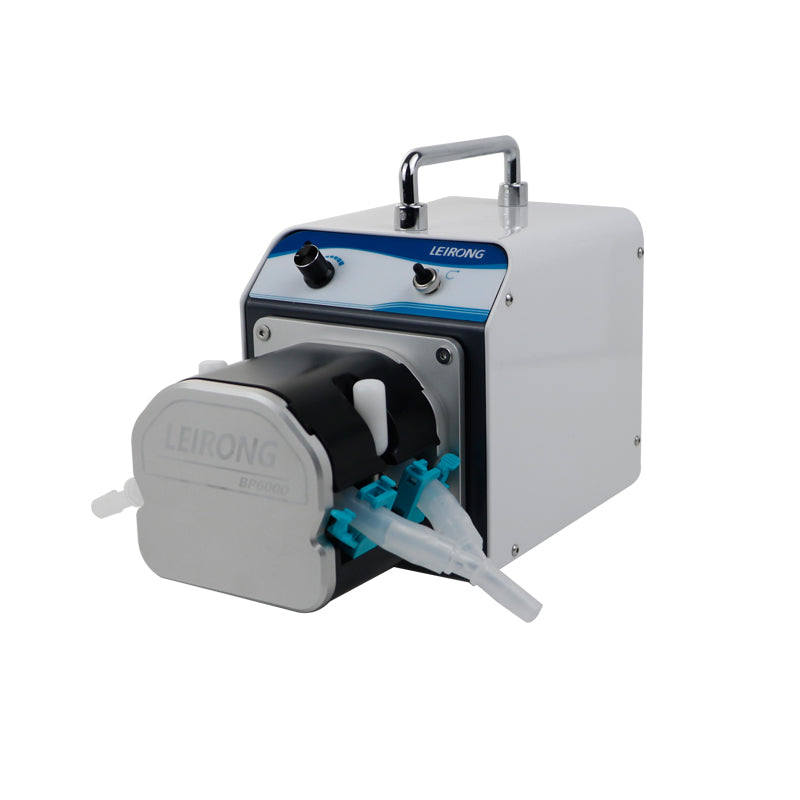

ZP6000 High Flow Dual Channel Peristaltic Pump 280-5800ml/min Variable Speed Reversible

ZP6000 Adjustable Peristaltic Pump-Data Sheet

Key Features

• Dual-tube dual-channel design – pump two different fluids at the same time; compact structure saves valuable space
• Metal pump head + aluminum bridge cover – rugged, durable, corrosion-resistant (acid & alkali), no deformation, long service life

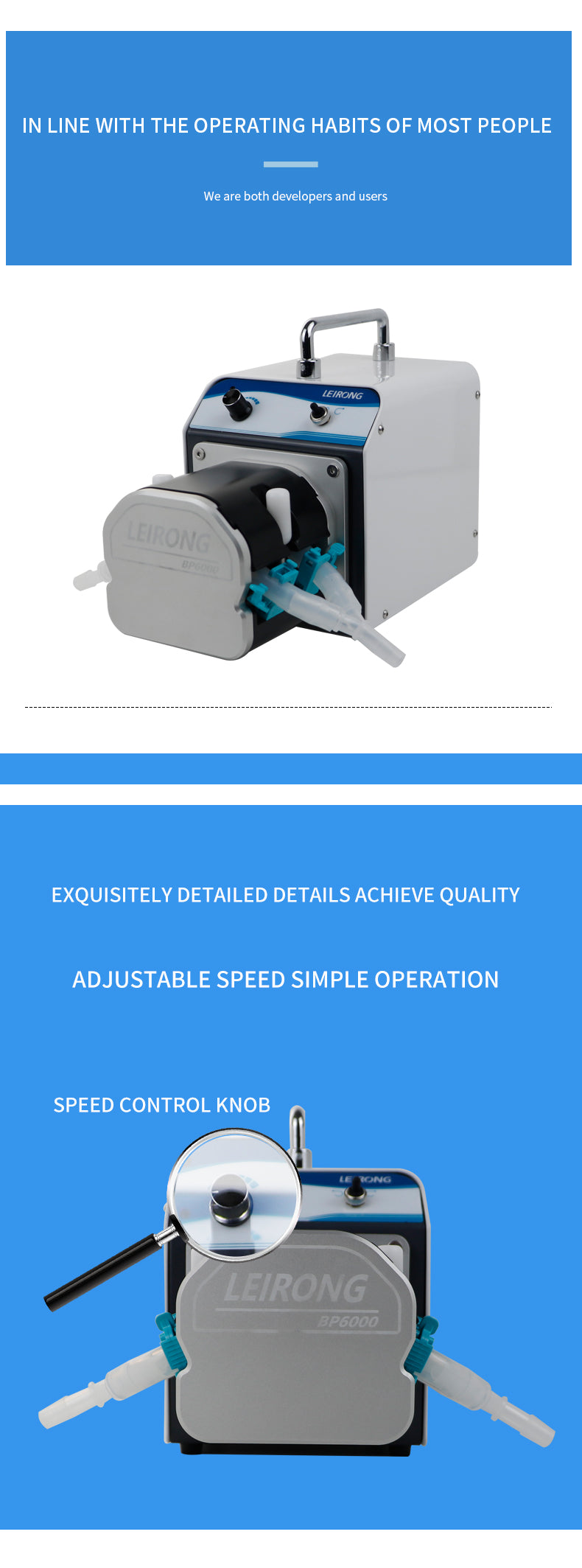

• Knob stepless speed control – intuitive and precise flow adjustment, user-friendly operation

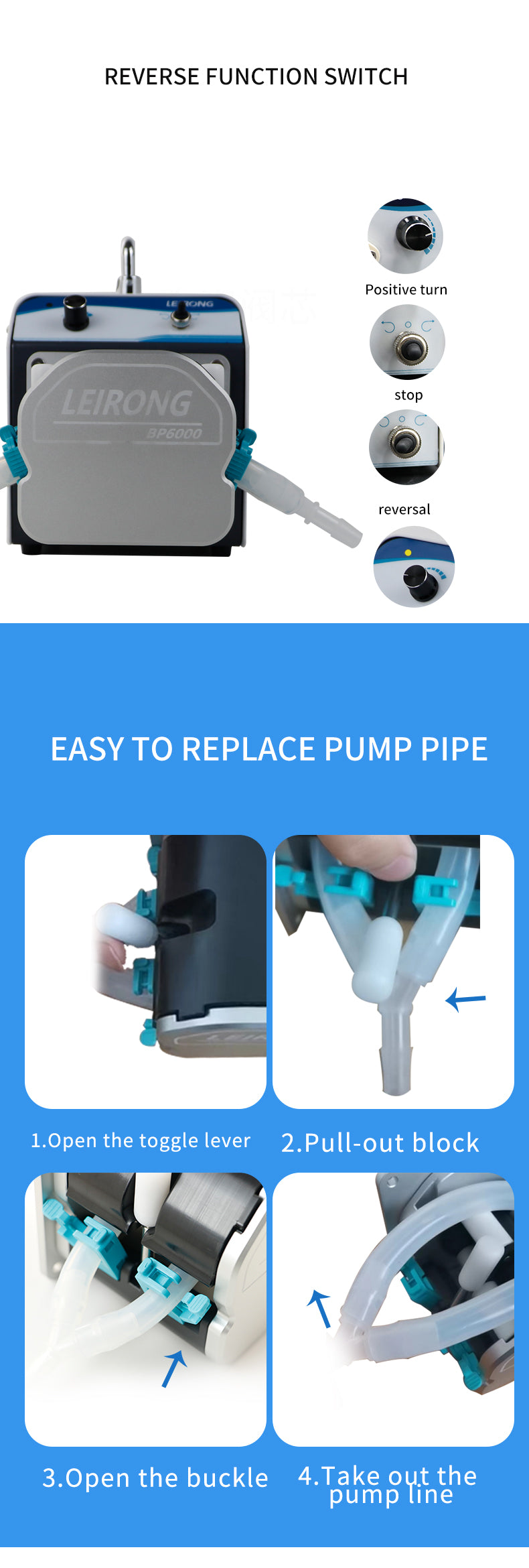

• Toggle switch for easy forward/reverse direction change – freely control fluid flow for filling or suction
• Independent snap-lock tube clamp – tool-free, fast tube replacement, no slippage or tube escape
• 3-roller rotor + dual bearing structure – ultra-smooth running, low noise (≤65dB), maintenance-free, extended lifespan
• Spring compensation + staggered roller layout + minimal roller gap – stable suction, flow compensation, no backflow, low pulsation, gentle on tubing, greatly extends pump tube life

Main Application Fields

• Laboratory precision liquid transfer, dosing, sampling & experiments
• Food & beverage machinery filling, quantitative addition
• Smart retail vending machines liquid supply systems
• Industrial fluid circulation, chemical dosing, pharmaceutical preparation, cosmetic filling
• Safe transfer of corrosive or high-purity / clean liquids

Technical Specifications
