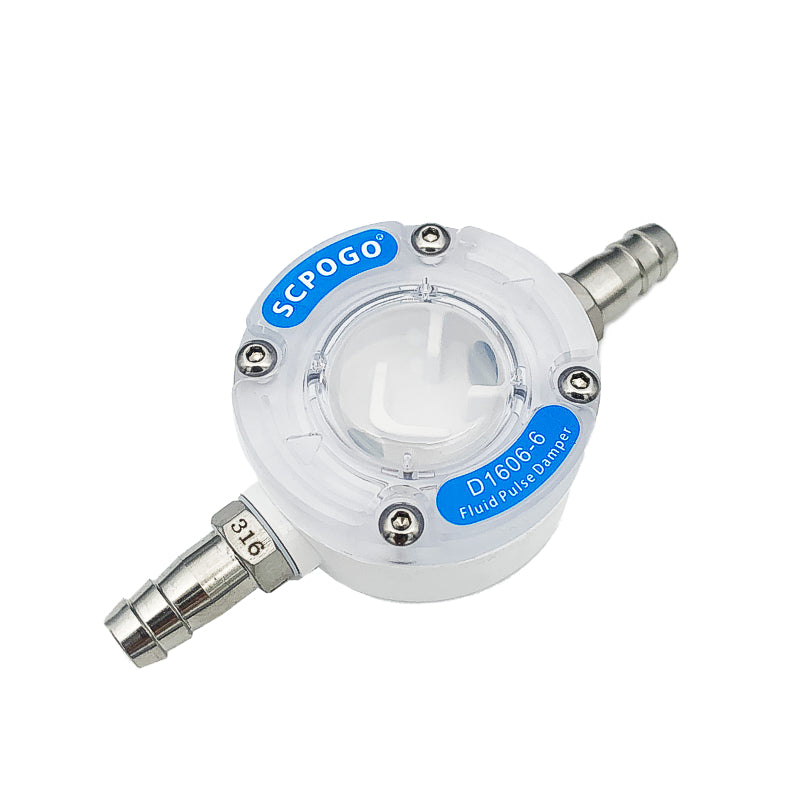

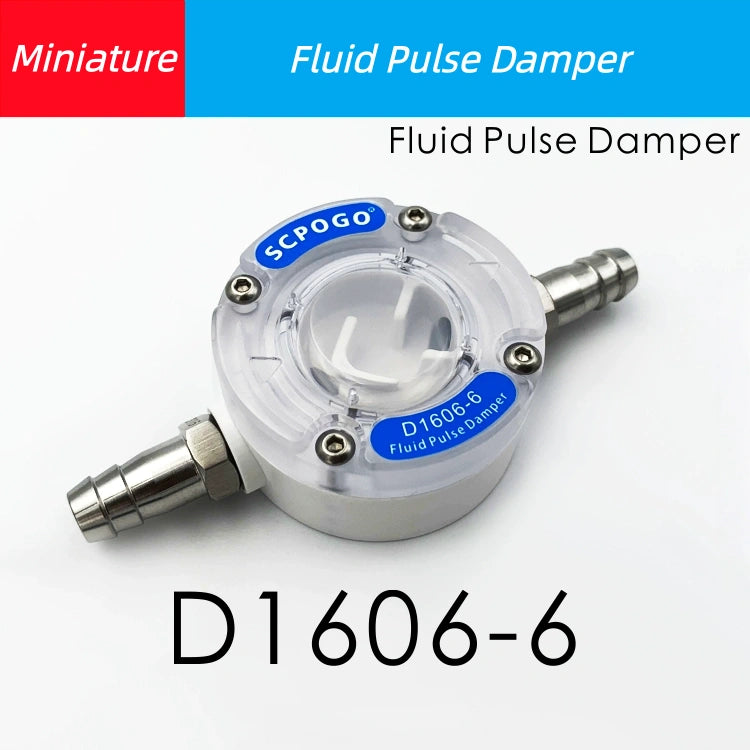

D1606-6 Miniature Pulsation Dampener for Peristaltic Pumps

Liquid Pulsation Dampener

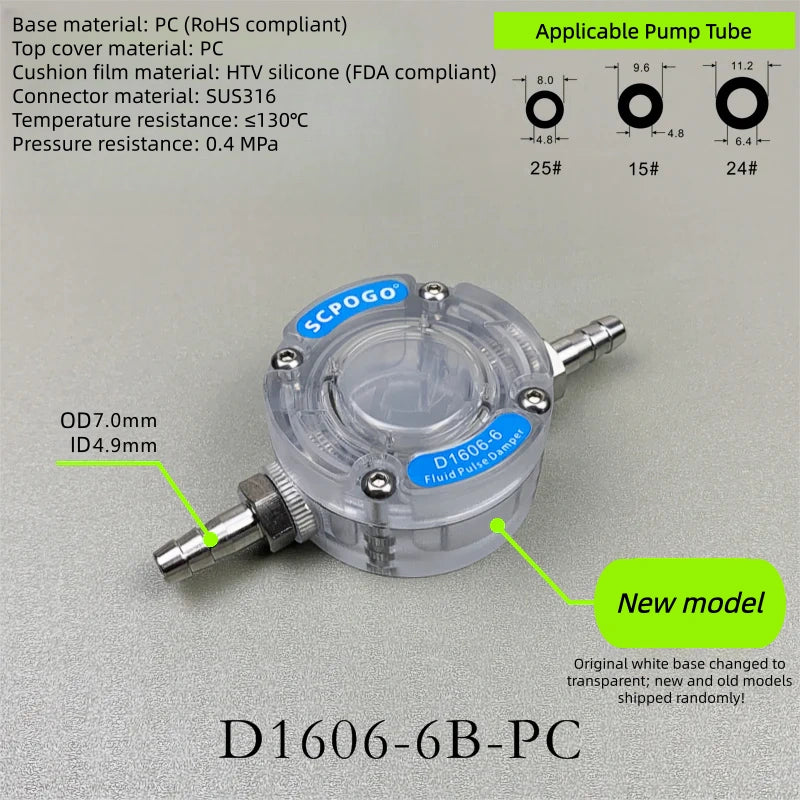

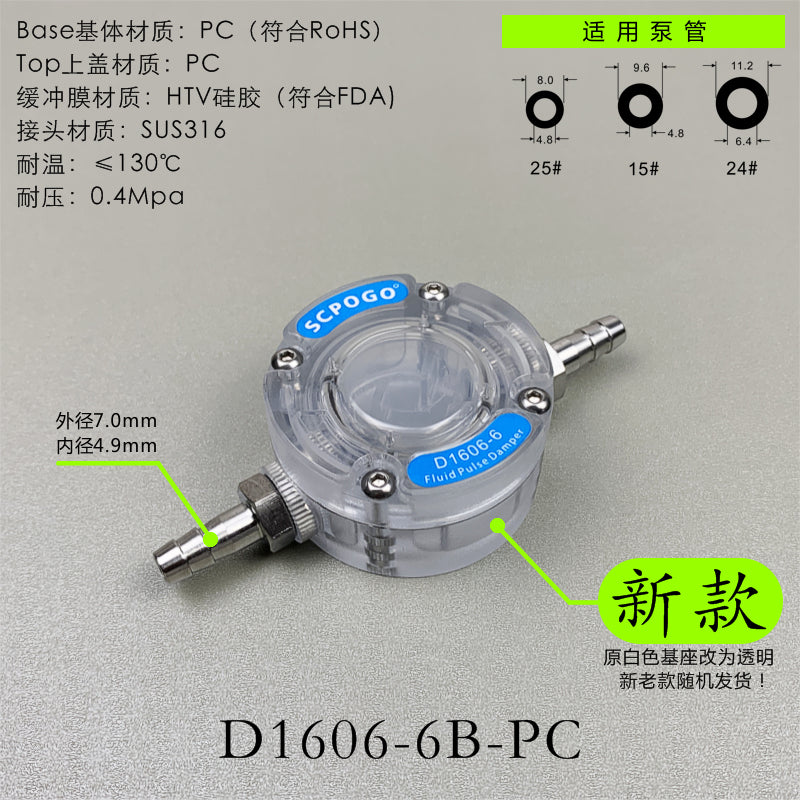

D0606-6B-PC

-Base material: PC (RoHS compliant)
-Top cover material: PC
-Buffer film material: HTV silicone (compliant with FDA)
-Joint material: SUS316
-Temperature resistance: ≤ 130 ℃
-Pressure resistance: 0.4Mpa
-Joint outer diameter 7.0mm
-Joint inner diameter 4.9mm
-Applicable pump pipe 25 # 14 # 24#

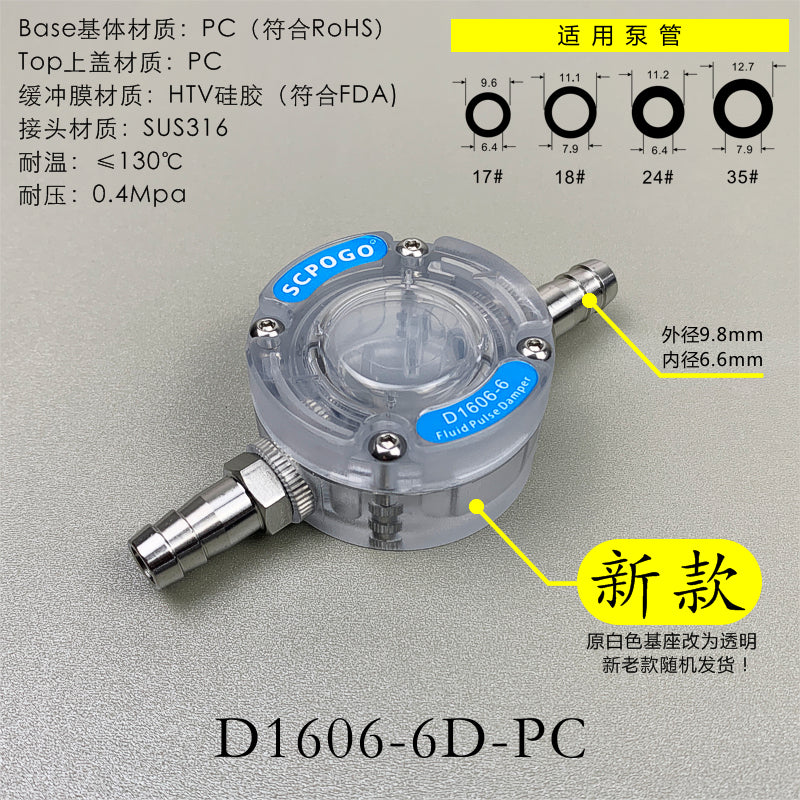

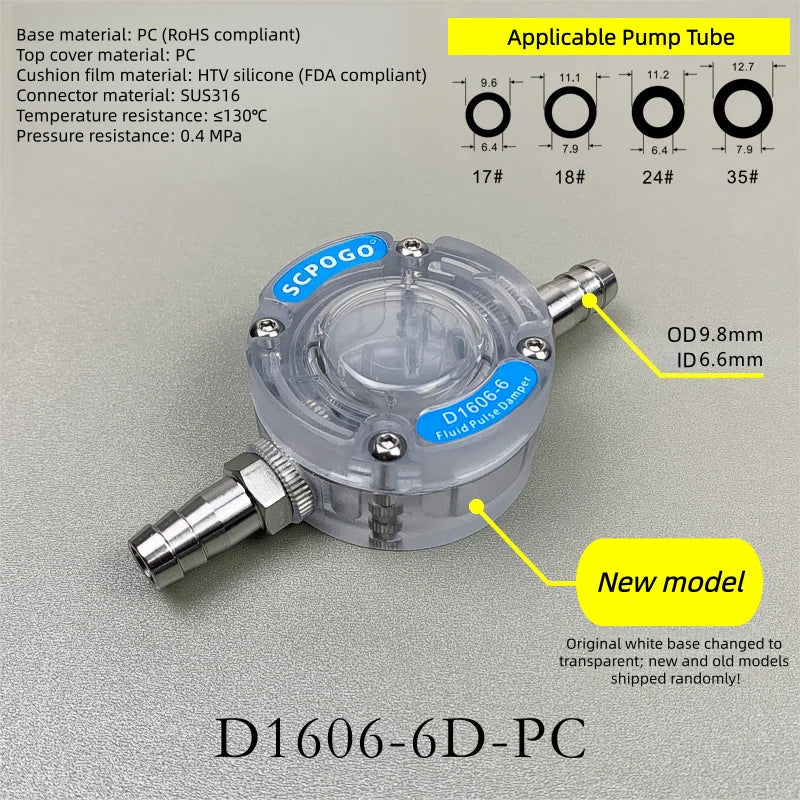

D1606-6D-PC

-Base material: PC (RoHS compliant)
-Top cover material: PC
-Buffer film material: HTV silicone (compliant with FDA)
-Joint material: SUS316
-Temperature resistance: ≤ 130 ℃
-Pressure resistance: 0.4Mpa
-Joint outer diameter 9.8mm
-Joint inner diameter 6.6mm
-Applicable pump pipe 17 # 18 # 24# 35#

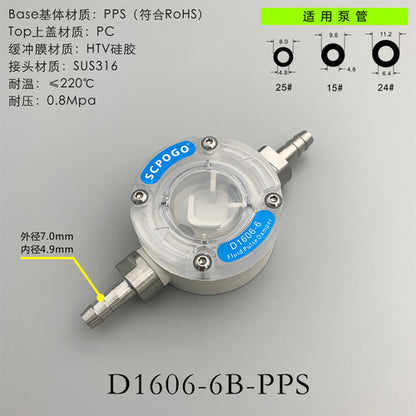

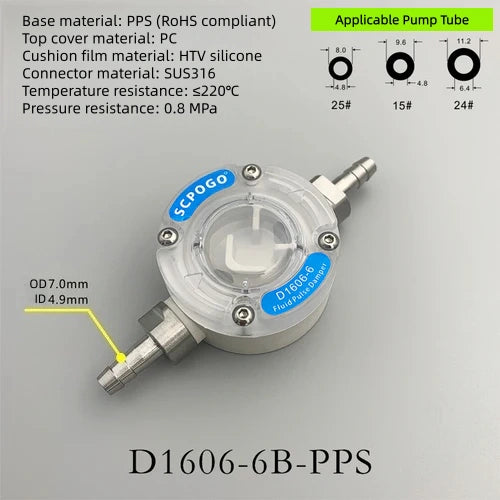

D1606-6B-PPS

-Base material: PPS (RoHS compliant)
-Top cover material: PC
-Buffer film material: HTV silicone (compliant with FDA)
-Joint material: SUS316
-Temperature resistance: ≤ 220 ℃
-Pressure resistance: 0.8Mpa
-Joint outer diameter 7.0mm
-Joint inner diameter 4.9mm
-Applicable pump pipe 25# 15# 24#

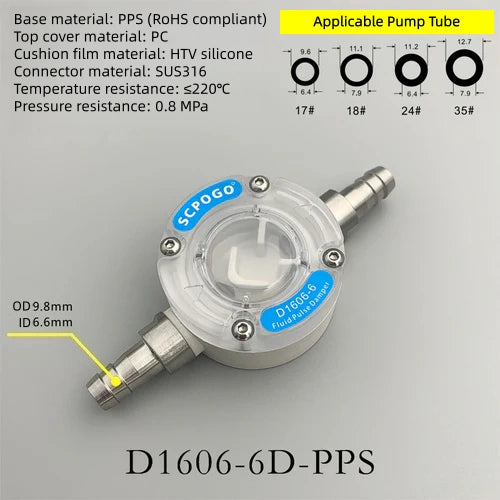

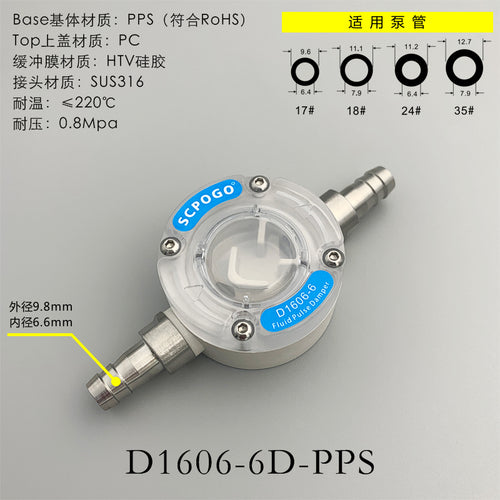

D1606-6D-PPS

-Base material: PPS (RoHS compliant)
-Top cover material: PC
-Buffer film material: HTV silicone (compliant with FDA)
-Joint material: SUS316
-Temperature resistance: ≤ 220 ℃
-Pressure resistance: 0.8Mpa
-Joint outer diameter 9.8mm
-Joint inner diameter 6.6mm
-Applicable pump pipe 17 # 18 # 24# 35#

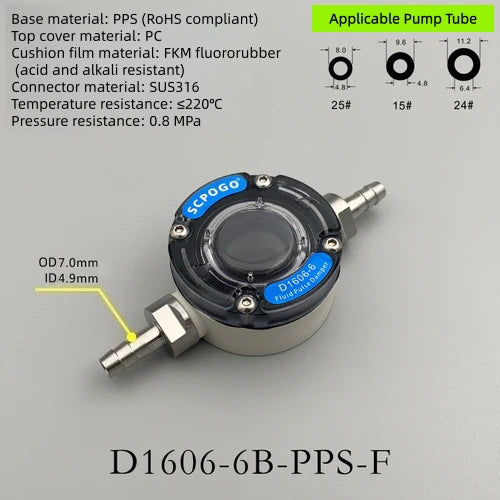

D1606-6B-PPS-F

-Base material: PPS (RoHS compliant)
-Top cover material: PC
-Buffer film material: HTV silicone (compliant with FDA)
-Joint material: SUS316
-Temperature resistance: ≤ 220 ℃
-Pressure resistance: 0.8Mpa
-Joint outer diameter 7.0mm
-Joint inner diameter 4.9mm
-Applicable pump pipe 25# 15# 24#

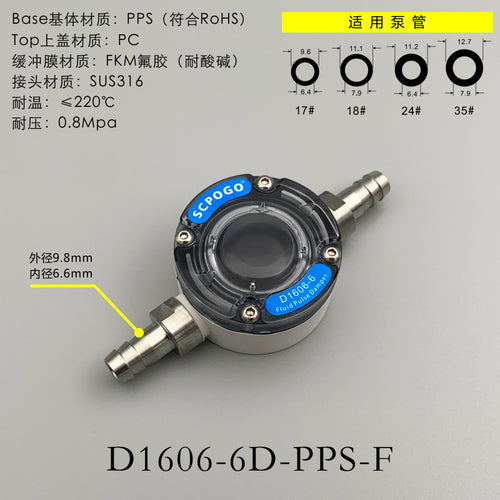

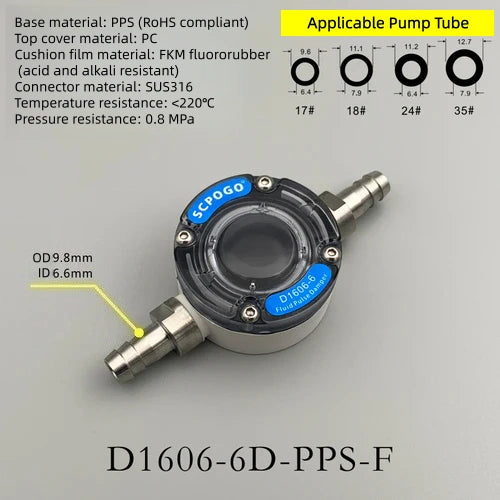

D1606-6D-PPS-F

-Base material: PPS (RoHS compliant)
-Top cover material: PC
-Buffer film material: HTV silicone (compliant with FDA)
-Joint material: SUS316
-Temperature resistance: ≤ 220 ℃
-Pressure resistance: 0.8Mpa
-Joint outer diameter 9.8mm
-Joint inner diameter 6.6mm
-Applicable pump pipe 17# 18# 24# 35#

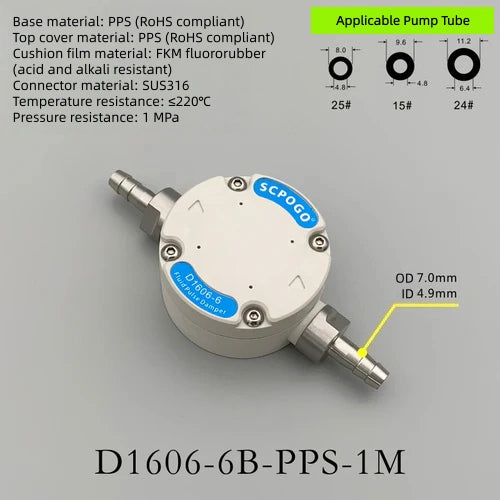

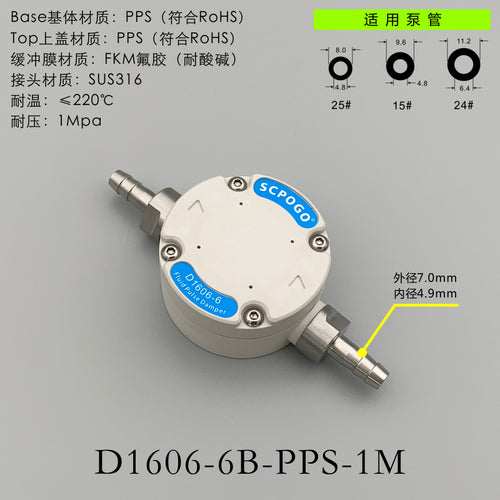

D1606-6B-PPS-1M

-Base material: PPS (RoHS compliant)
-Top cover material: PC
-Buffer film material: HTV silicone (compliant with FDA)
-Joint material: SUS316
-Temperature resistance: ≤ 220 ℃
-Pressure resistance: 1Mpa
-Joint outer diameter 7.0mm
-Joint inner diameter 4.9mm
-Applicable pump pipe 25# 15# 24#

D1606-6D-PPS-F

-Base material: PPS (RoHS compliant)
-Top cover material: PC
-Buffer film material: HTV silicone (compliant with FDA)
-Joint material: SUS316
-Temperature resistance: ≤ 220 ℃
-Pressure resistance: 1Mpa
-Joint outer diameter 9.8mm
-Joint inner diameter 6.6mm
-Applicable pump pipe 17# 18# 24# 35#

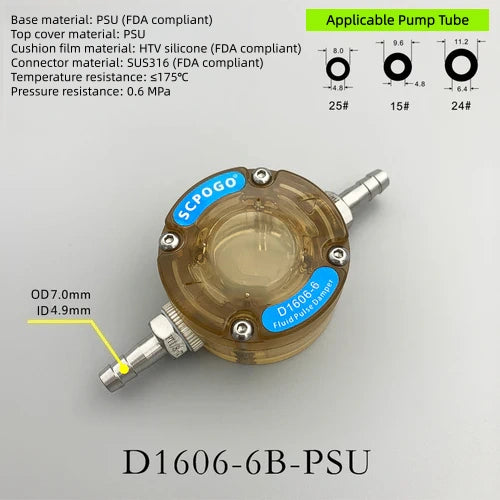

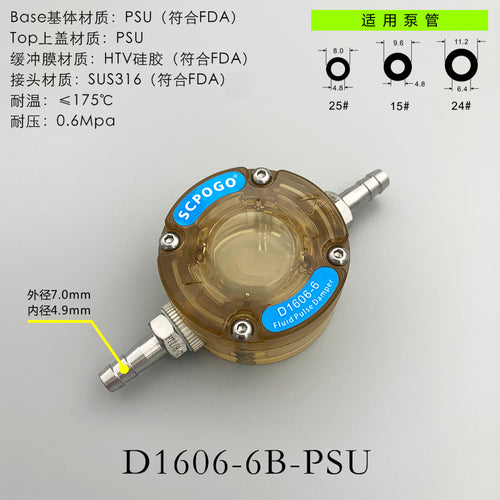

D1606-6B-PSU

-Base material: PSU (RoHS compliant)
-Top cover material: PSU
-Buffer film material: HTV silicone (compliant with FDA)
-Joint material: SUS316 (FDA)
-Temperature resistance: ≤ 175 ℃
-Pressure resistance: 0.6Mpa
-Joint outer diameter 7.0mm
-Joint inner diameter 4.9mm
-Applicable pump pipe 25# 15# 24#

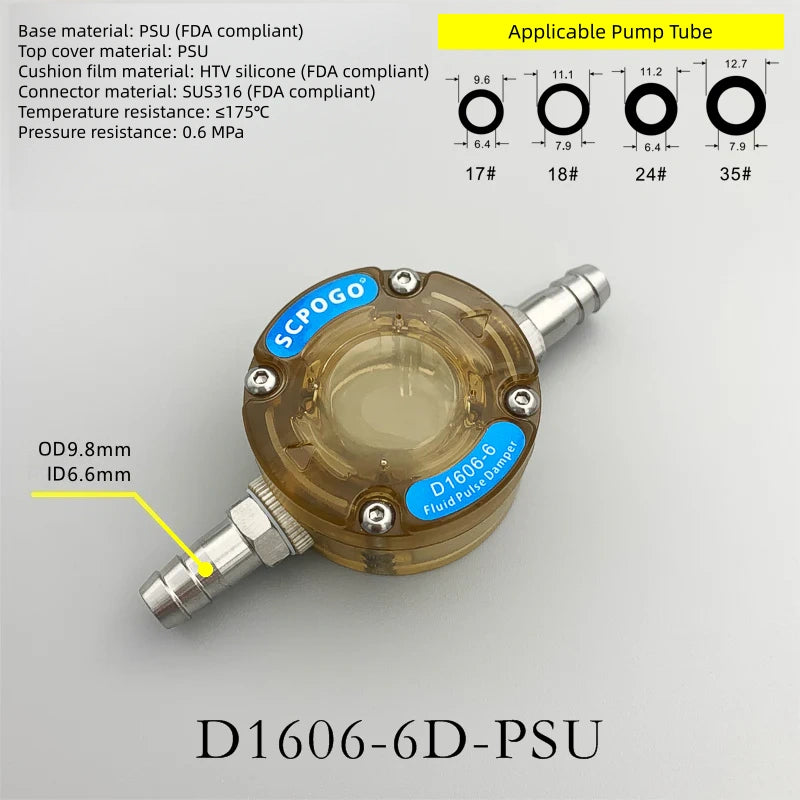

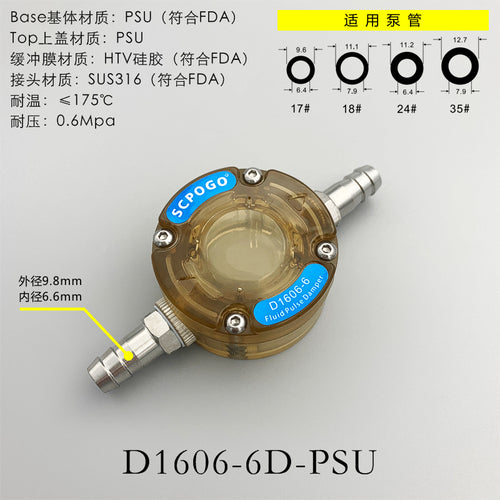

D1606-6D-PSU

-Base material: PSU (RoHS compliant)
-Top cover material: PSU
-Buffer film material: HTV silicone (compliant with FDA)
-Joint material: SUS316 (FDA)
-Temperature resistance: ≤ 175 ℃
-Pressure resistance: 0.6Mpa
-Joint outer diameter 9.8mm
-Joint inner diameter 6.6mm
-Applicable pump pipe 17# 18# 24# 35#
