ForeShine -Fluidic Solution

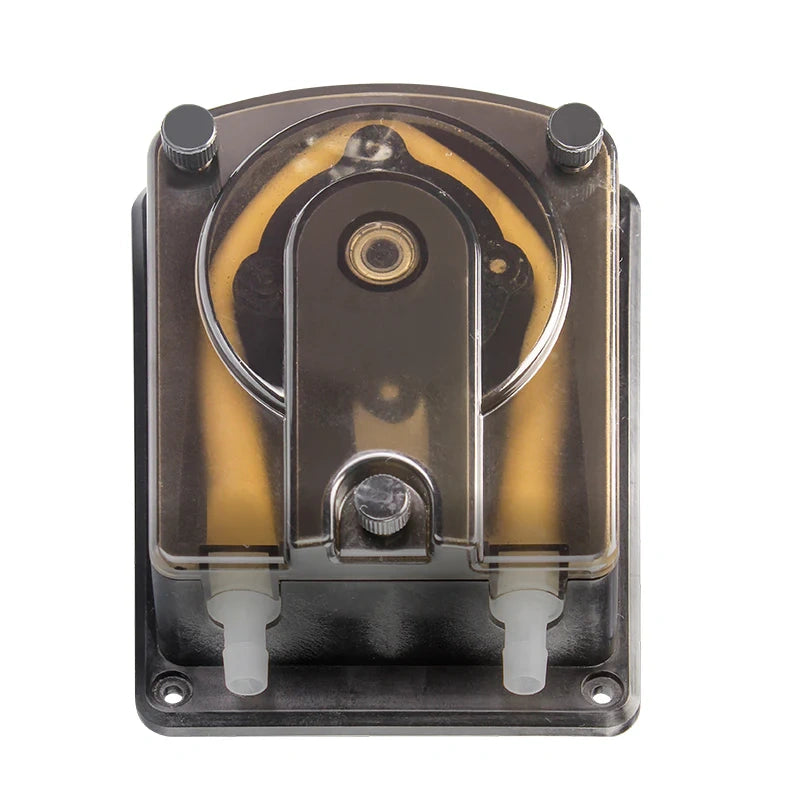

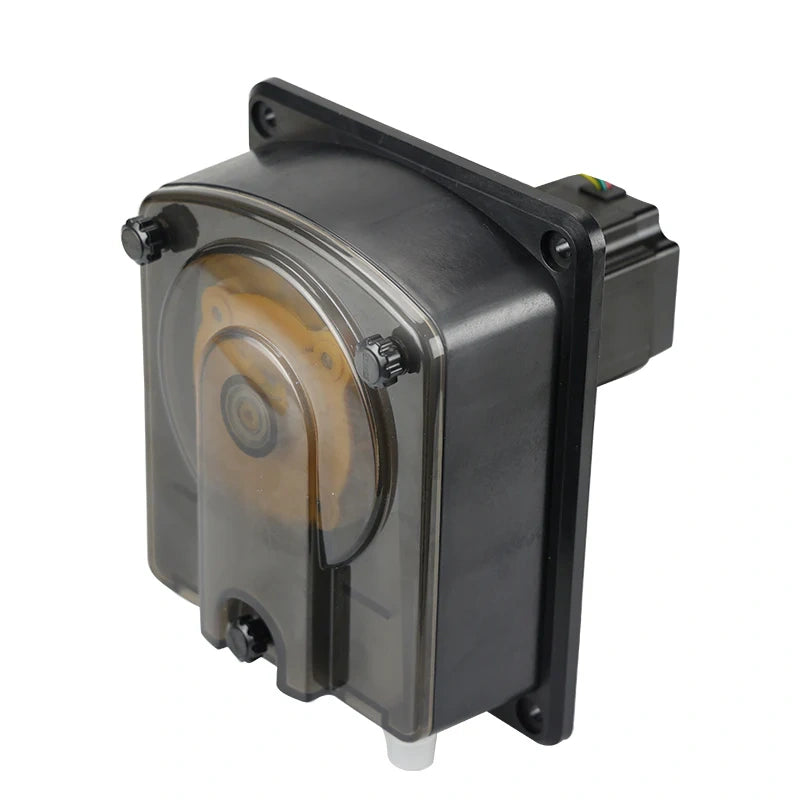

353K DC24V High Flow Rate Peristaltic Pump OEM for High Viscosity Liquid Filling Vending Laundry Detergents Distributor

353K DC24V High Flow Rate Peristaltic Pump OEM for High Viscosity Liquid Filling Vending Laundry Detergents Distributor

Regular price $90.00 USD
Regular price Sale price $90.00 USD
Sale Sold out
Shipping calculated at checkout.

  • An easy-load peristaltic pump product, tool-free disassembly of the pump cover, easy to replacethe tube
  • Streamlined, waterproof, dustproof and easy to clean
  • The product has certain corrosion-resistant application scenarios.
  • Flow rate up to 7360ml/min
  • Can be installed with a 3.3mm wall thickness hose for easy delivery of large flow viscous liquids
  • High suction and high pressure, more suitable for viscous liquid transportation such as viscose and paste
  • Can adapt to DC, DC planetary, , stepping  motors
  • The pump body base is designed with mounting holes without the need for a mounting plate.

  • Chemical industry: chemical delivery
  • Food Process: canned drinks
  • Printing and dyeing industry: dye delivery
  • Laboratory: chemical or fluid professional experiments
  • Laundry detergent dispenser


Model selection suggestion

1. No strict requirements for flow accuracy and cost control, please use an ordinary DC gear motor and planetary gear motor for higher speed.For high precision delivery,please install small DC motor speed control board for precise speed control.
2. Continuous long-term operation,please slow running(166RPM or less),more than 166RPM speed,please use in a gap.

353K easy load peristaltic pump can be equipped with ordinary DC gear motor,DC planetary gear motor.

353K/ZL(DC motor)Ordinary DC gear motor

353K/ZLX(DC motor)DC planetary gear motor



353K/ZL(DC motor)

353K/ZLX(DC motor)
Speed Motor type:120,135r,166r 300r
Tube Fitted with 3.3mm thickness pump hose
Flow rate   ≤3450mL/min ≤5900mL/min
Roller Two working wheels,two guide wheels
Motor power Rated power 16W,50W peak power Rated power 36W,50W peak power
Motor Square DC gear motor 45 planetary gear motor
Drive DC converter board can be equipped with speed tuning
Voltage 12V,24V
Material Pump PA66+30GF,cover PC,wheel PA66+MuS2
Weight 1.3Kg 1.3Kg

Tube life
Silicone tube≥250h, Norprene A-60-F tube≥1000h, Norprene chemical tube≥1000h
(Note: The tube life is measured at a pump speed of 300rpm, no pressure at the hose outlet, and water delivery. For reference only, the actual data depends on the operating conditions.)

Motor life
≥1000h (temperature 15~35°C, relative humidity 55%~75%, rated voltage, rated load, temperature rise≤30°c, continuous working time<10min)

Flow rate(ml/min,medium:water)

Tube (ID*wall)












Flow rate

As there is an error DC motor speed,with the actual output speed changes,the actual flow of the peristaltic pump will change,selection,please give full consideration of this factor.


353K/BT stepper motor, specifications

Dimension (353K/ZL)

Dimension (353K/ZLX)
