100 pk Thead Barb Adatper with Male Thread UNF 1/4-28 OR M8 M10 Options, Plastic PP

MOQ : 100/PK

Product Description

Model Selection

SKU	Tube ID	Thread Length	Male Thread	Material

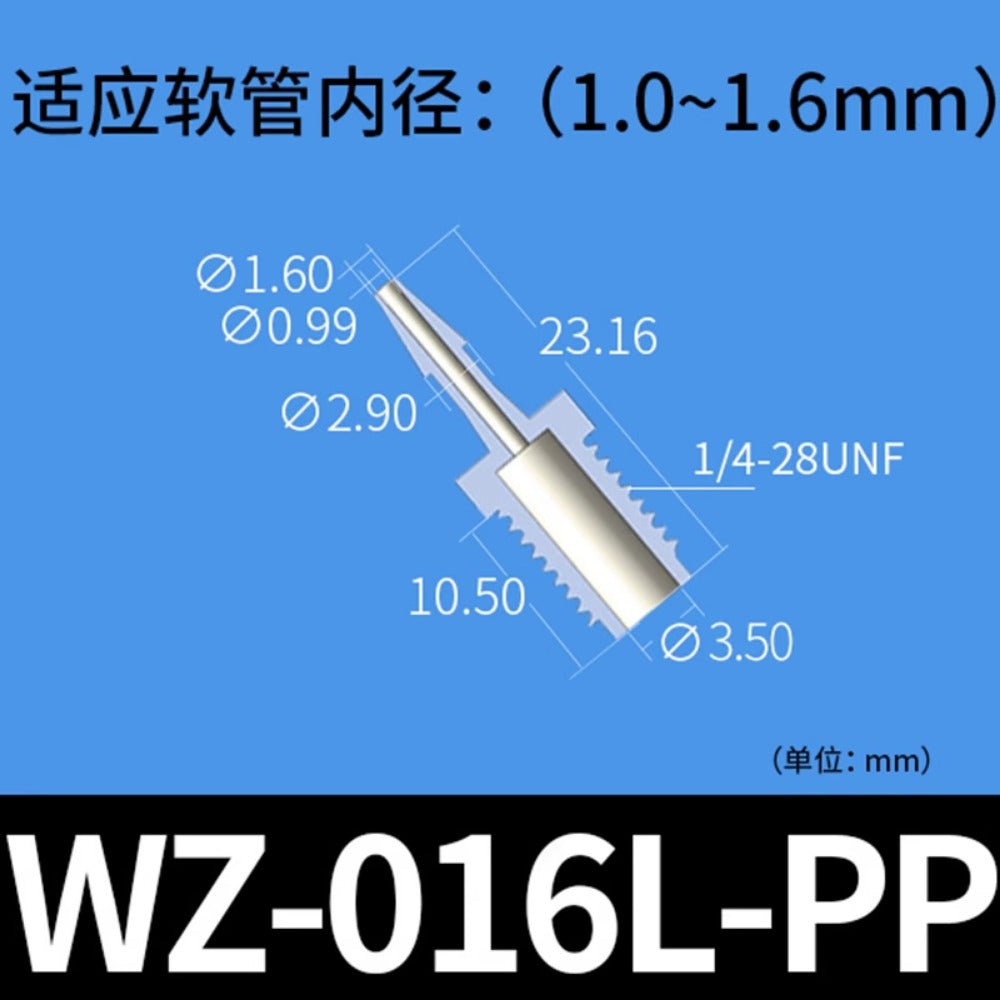

WZ-016L-PP	1.0~1.6mm	10.5mm	1/4-28UNF	PP

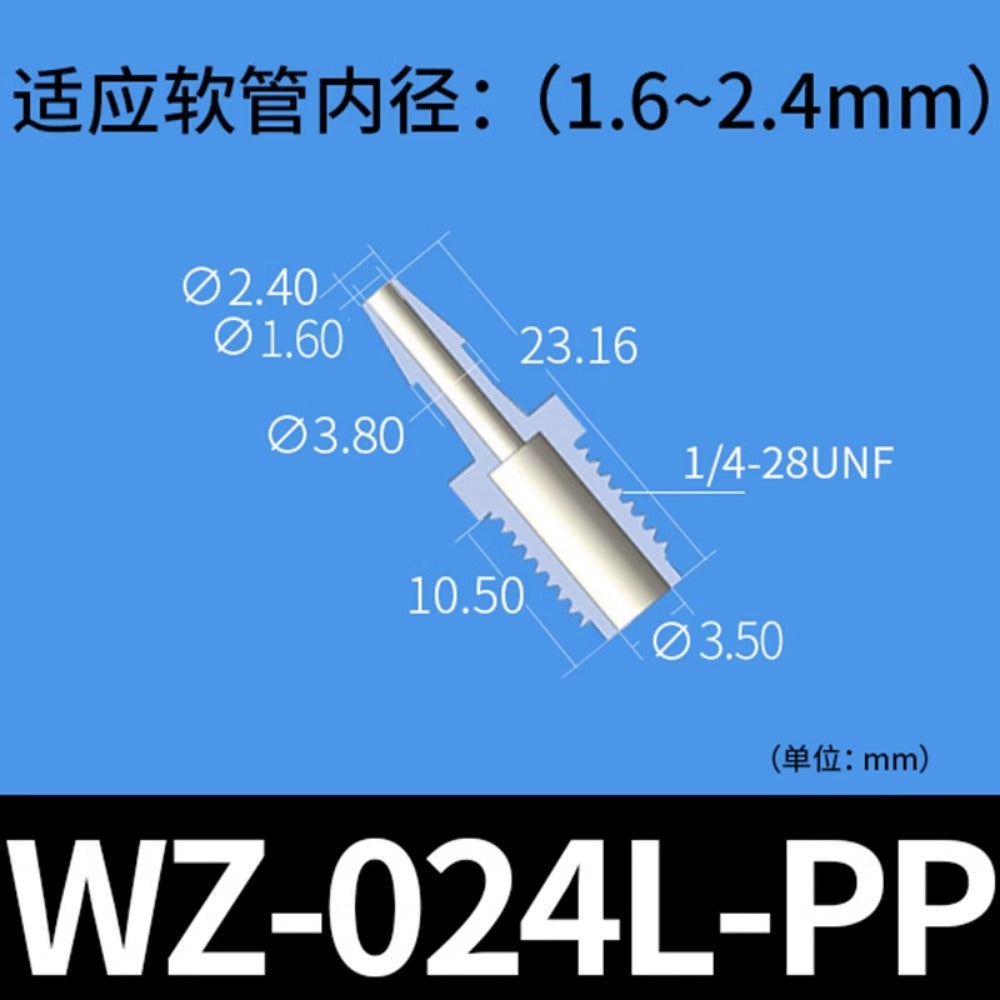

WZ-024L-PP	1.6~2.4mm	10.5mm	1/4-28UNF	PP

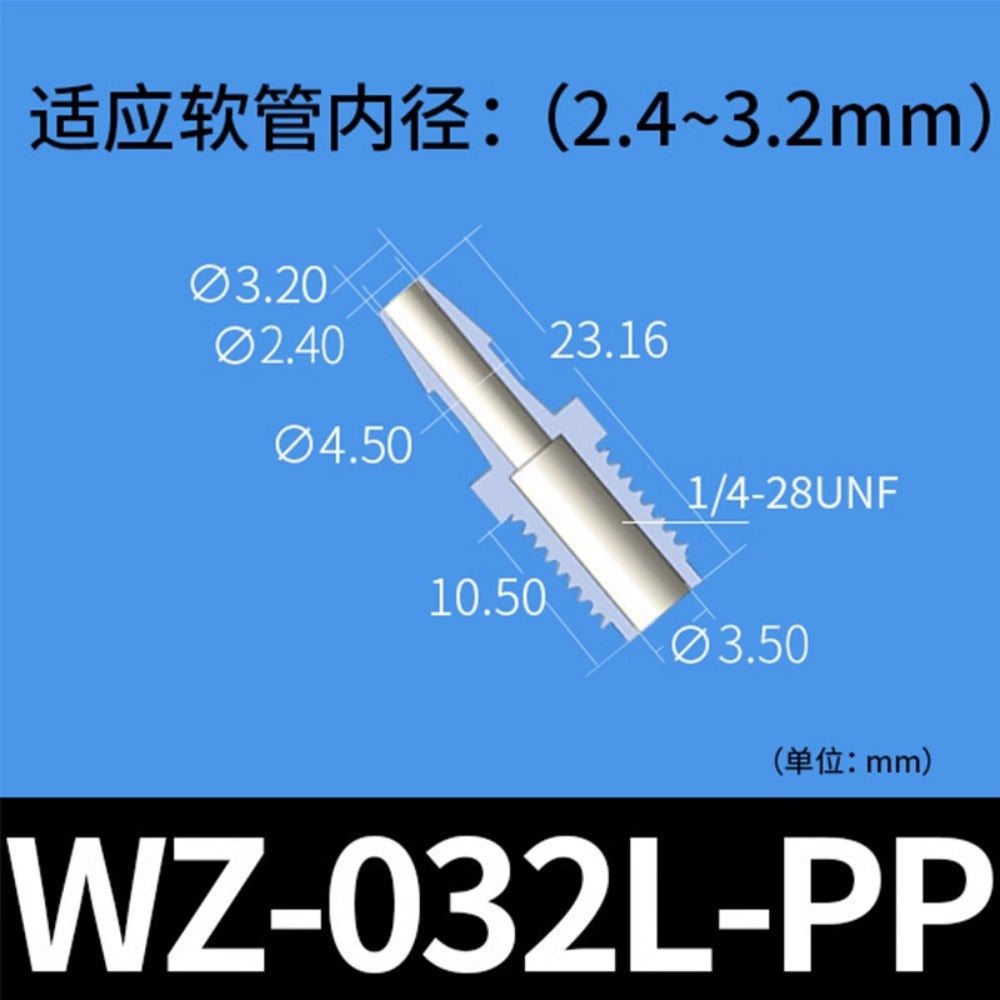

WZ-032L-PP	2.4~3.2mm	10.5mm	1/4-28UNF	PP
WZ-040L-PP	3.2~4.0mm	10.5mm	1/4-28UNF	PP

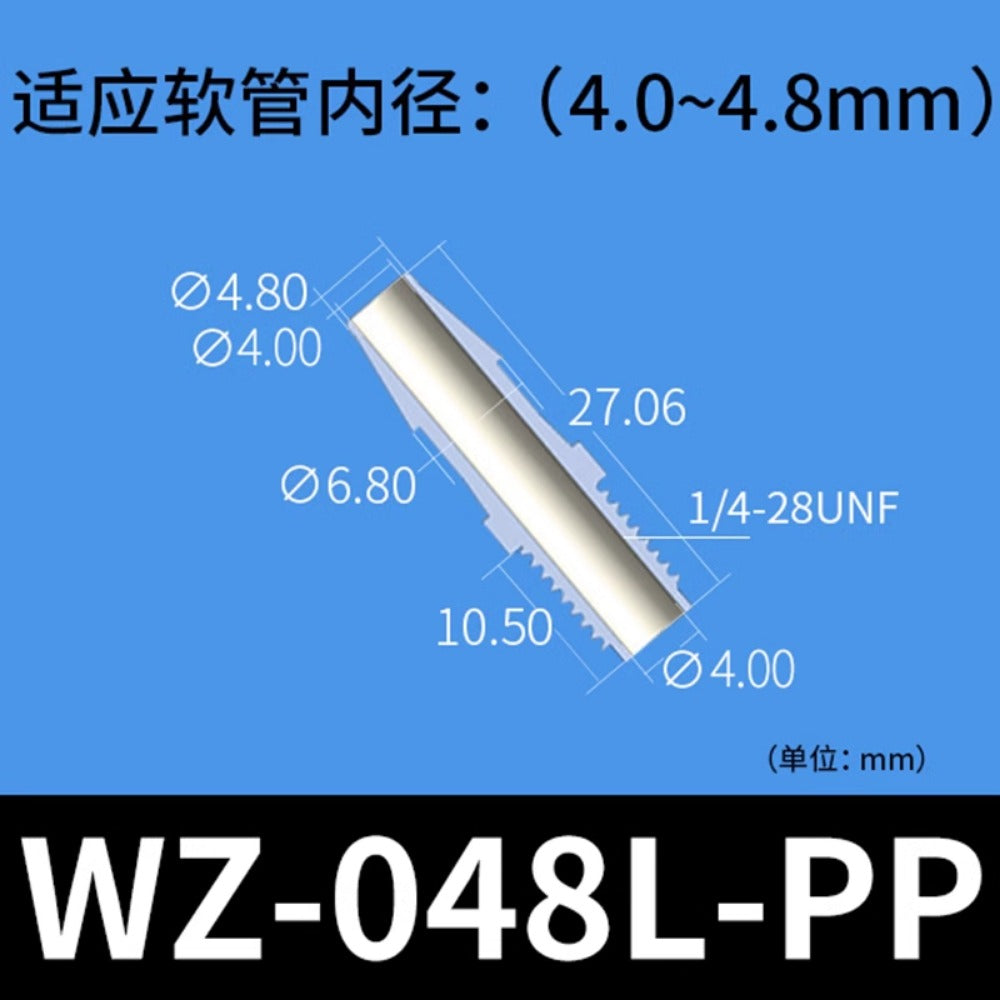

WZ-048L-PP	4.0~4.8mm	10.5mm	1/4-28UNF	PP

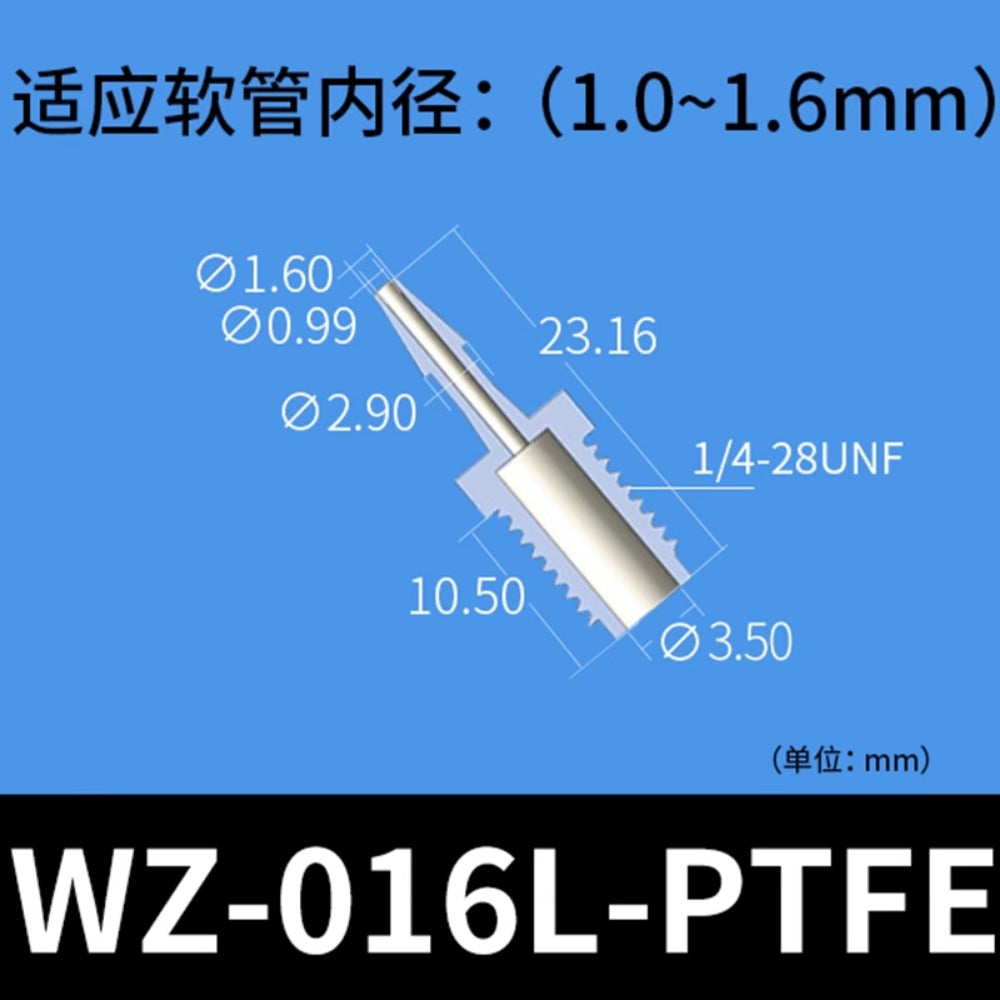

WZ-016L-PTFE	1.0~1.6mm	10.5mm	1/4-28UNF	PTFE

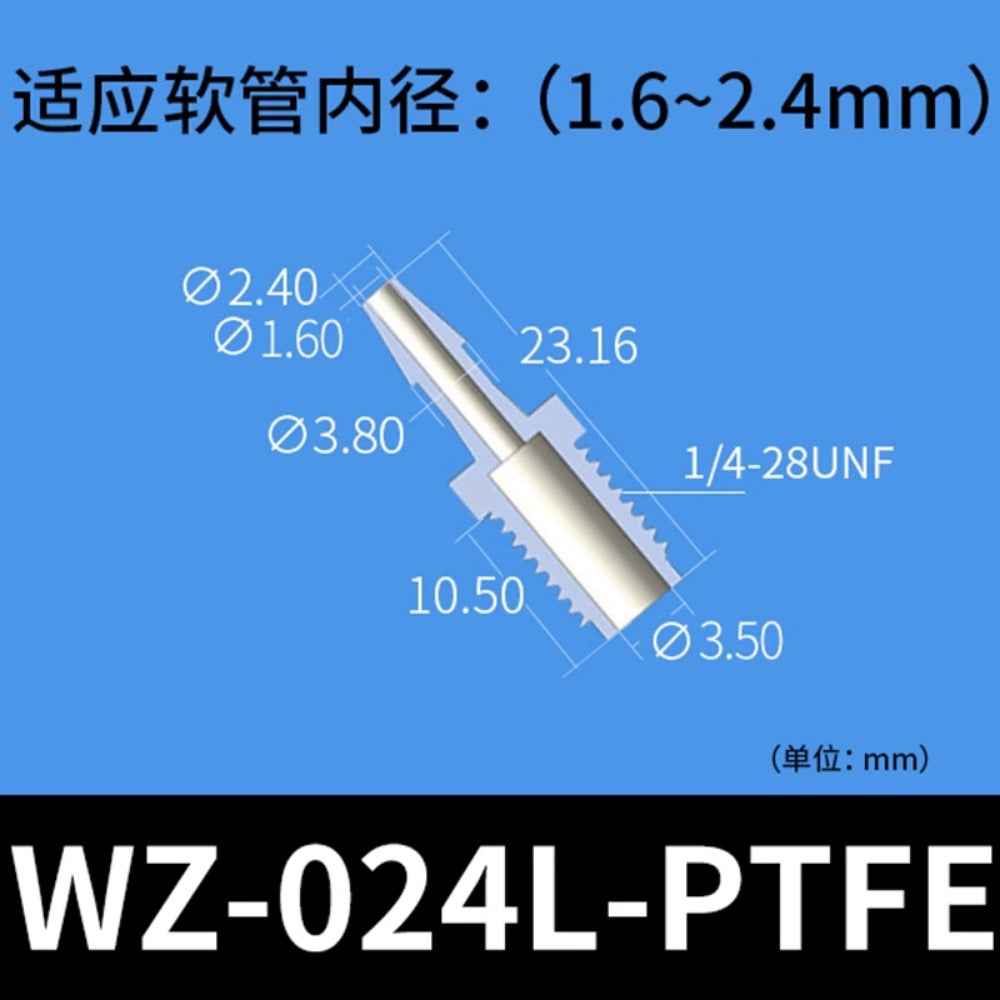

WZ-024L-PTFE	1.6~2.4mm	10.5mm	1/4-28UNF	PTFE

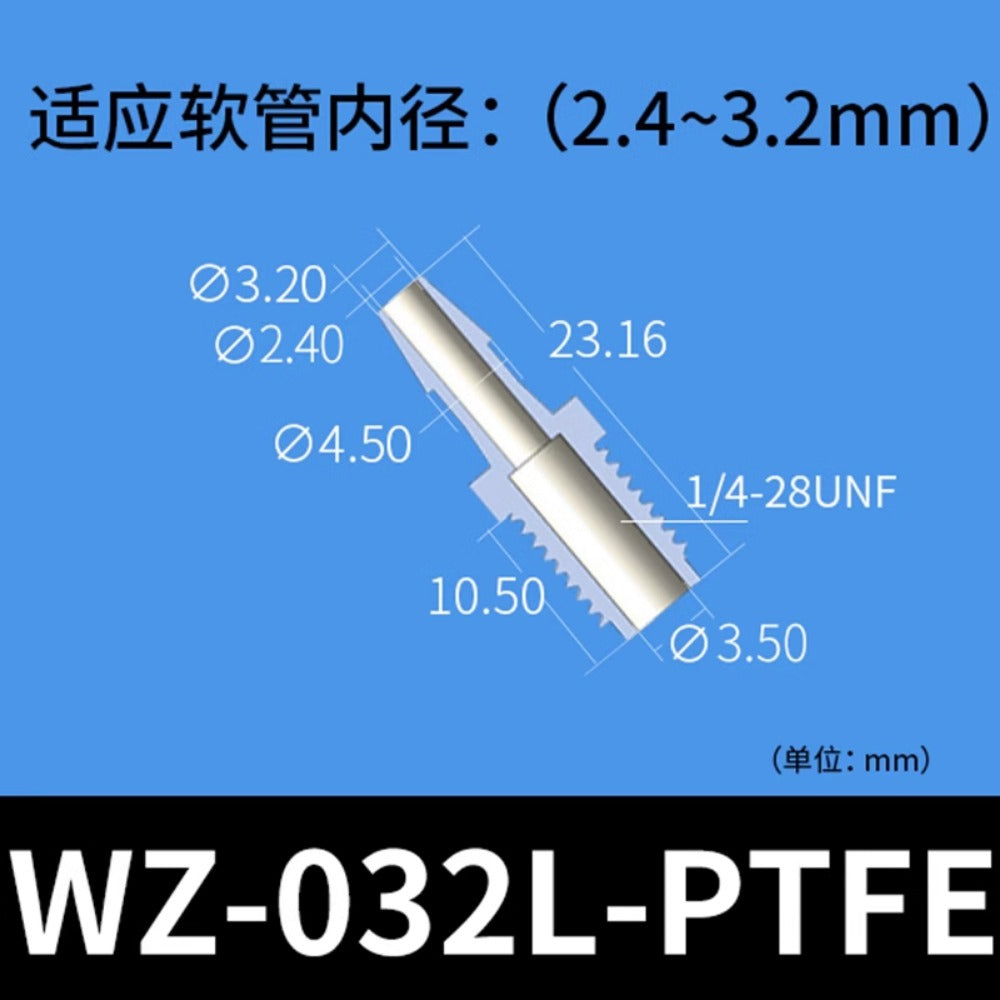

WZ-032L-PTFE	2.4~3.2mm	10.5mm	1/4-28UNF	PTFE

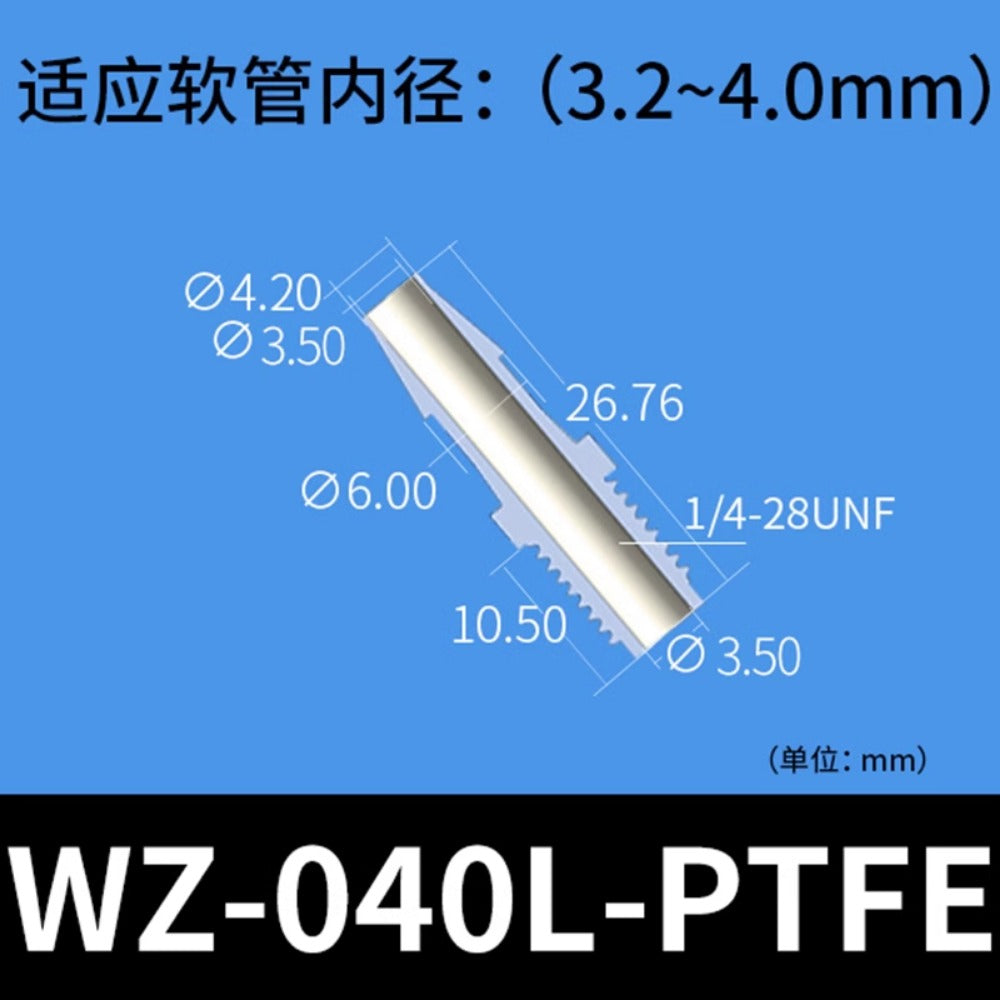

WZ-040L-PTFE	3.2~4.0mm	10.5mm	1/4-28UNF	PTFE

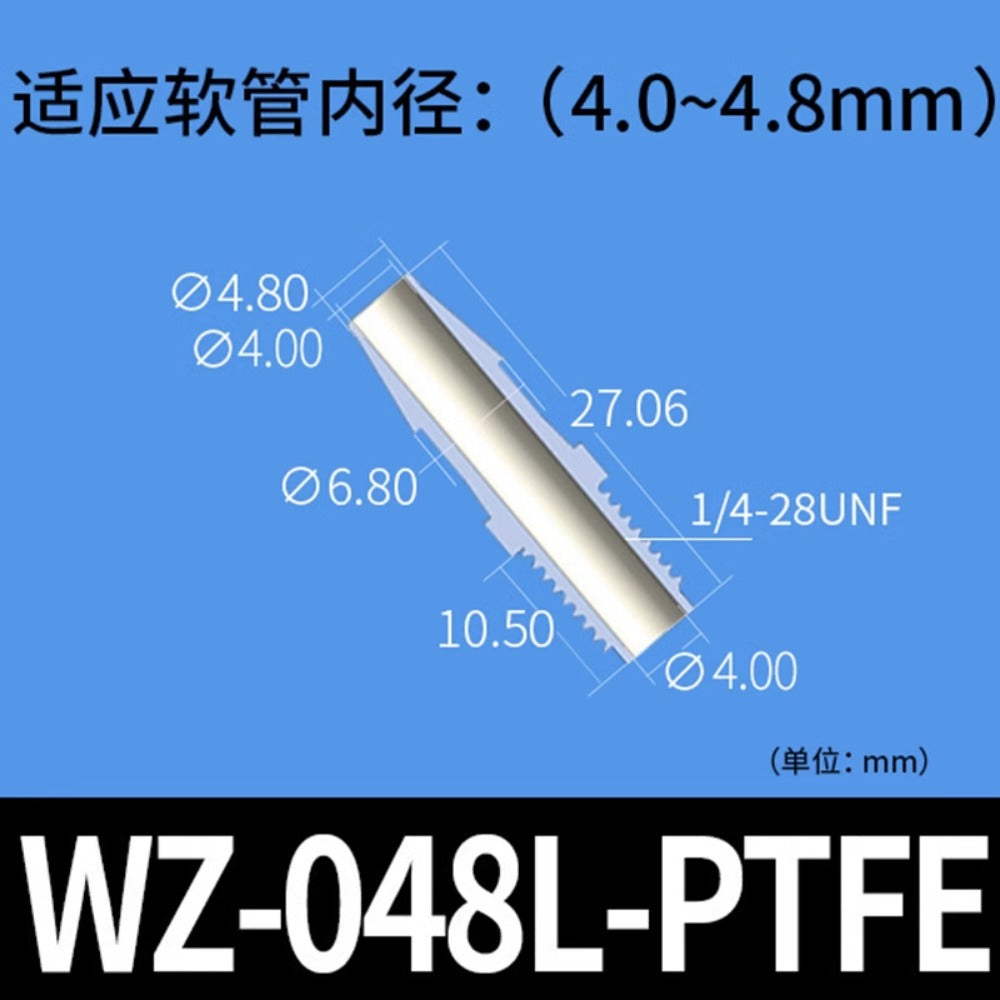

WZ-048L-PTFE	4.0~4.8mm	10.5mm	1/4-28UNF	PTFE
WZ-016-PP	1.0~1.6mm	6mm	1/4-28UNF	PP

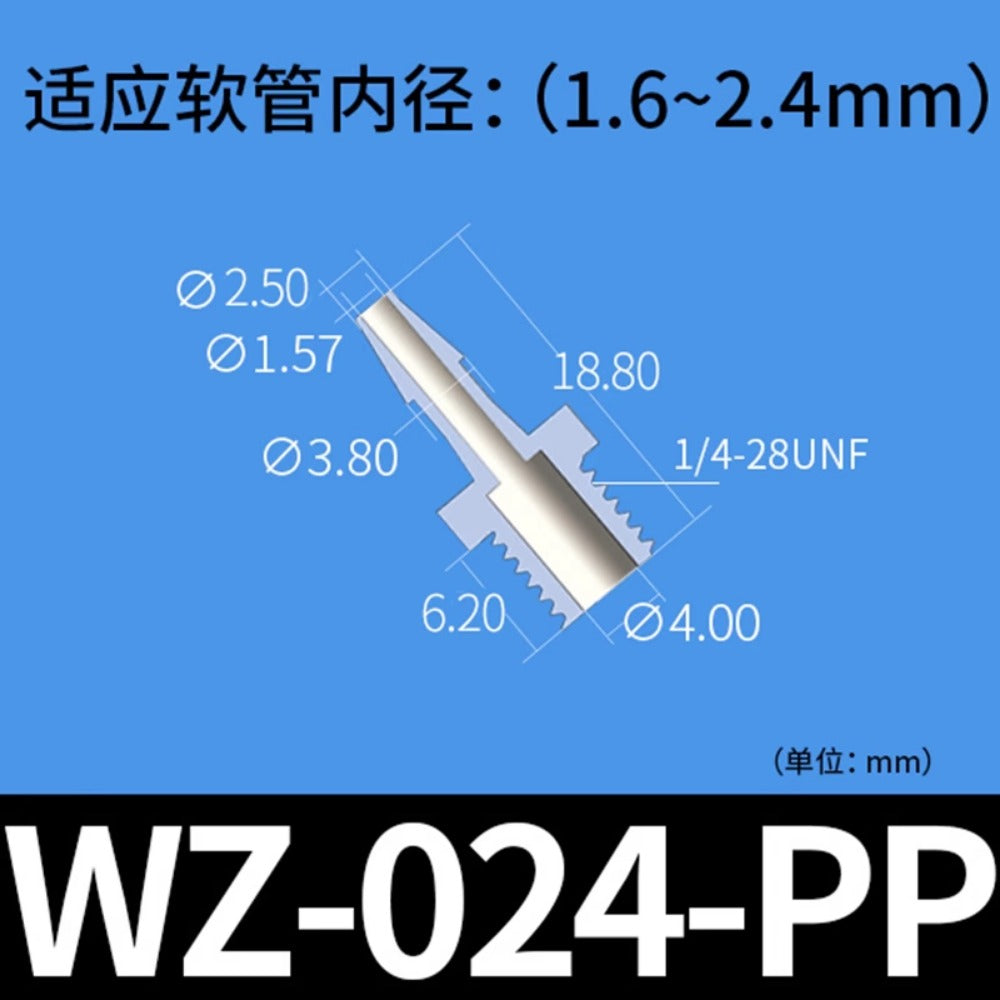

WZ-024-PP	1.6~2.4mm	6.2mm	1/4-28UNF	PP

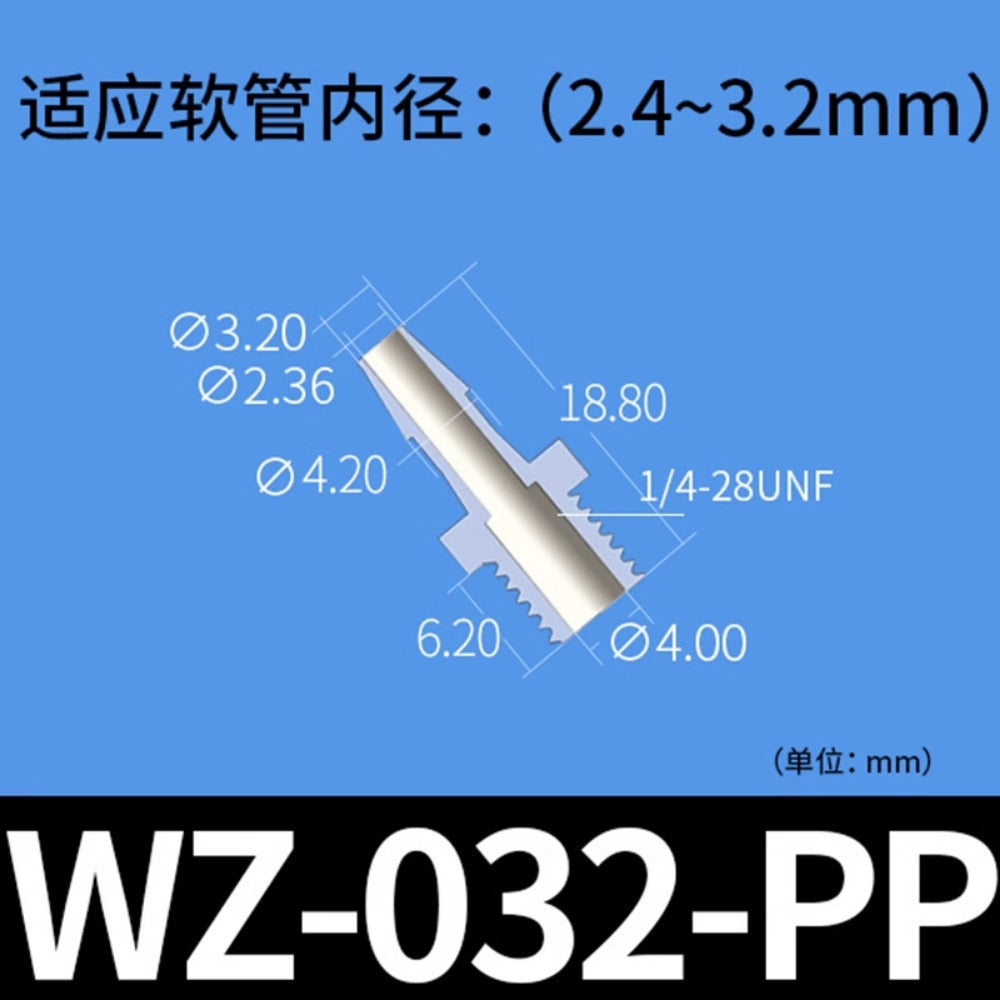

WZ-032-PP	2.4~3.2mm	6.2mm	1/4-28UNF	PP

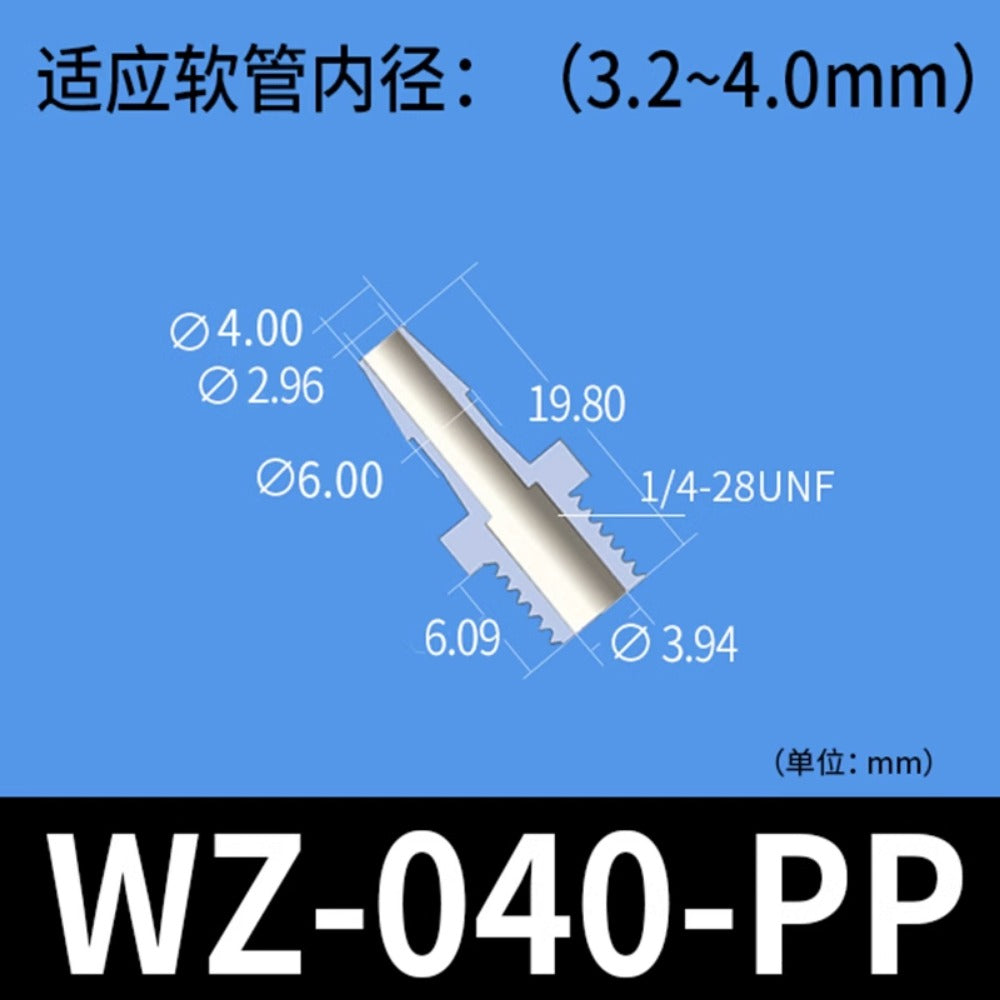

WZ-040-PP	3.2~4.0mm	6.09mm	1/4-28UNF	PP

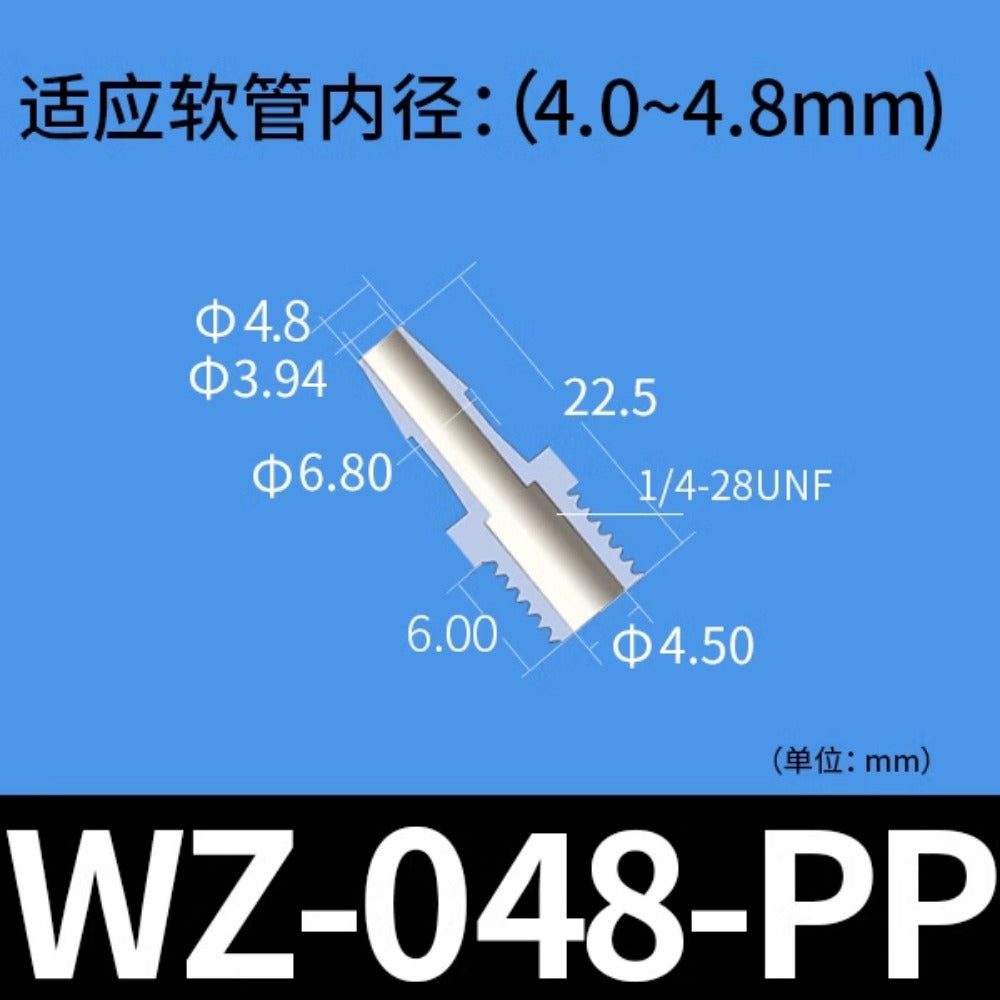

WZ-048-PP	4.0~4.8mm	6mm	1/4-28UNF	PP

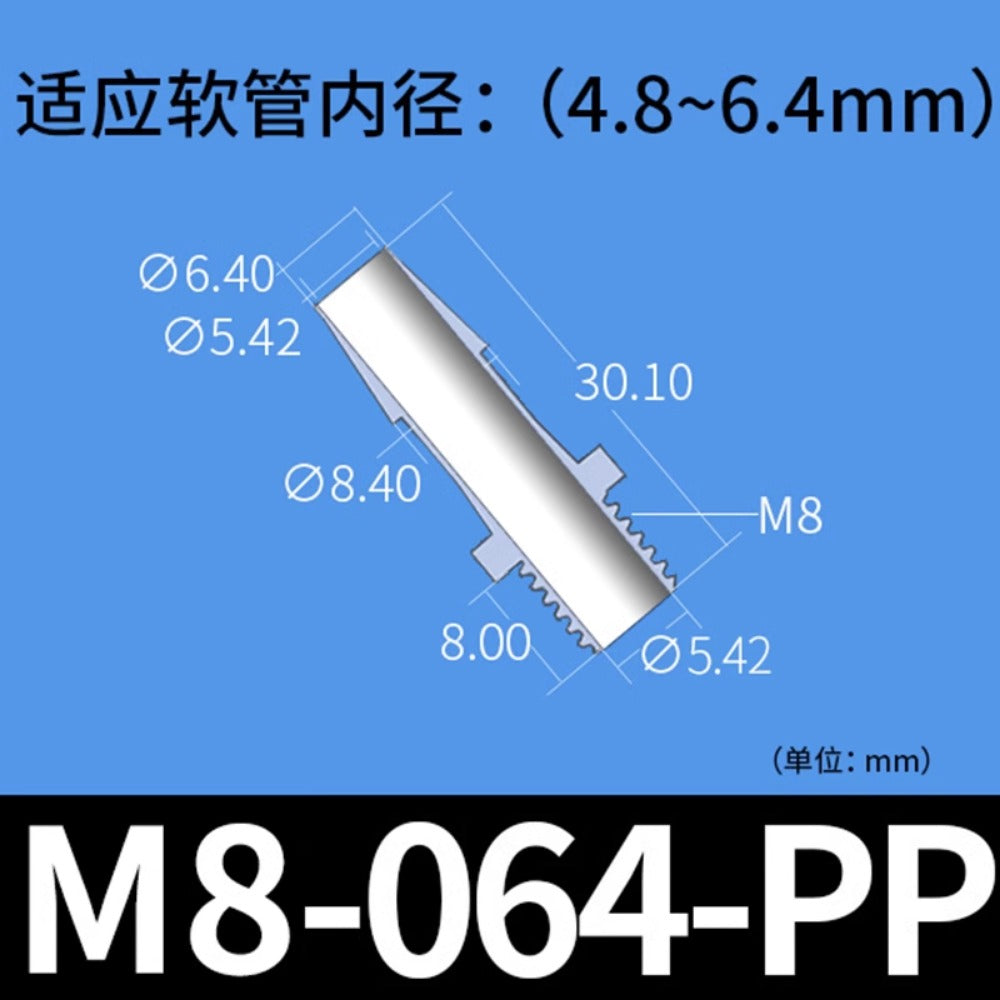

M8-064-PP	4.8~6.4mm	8mm	M8	PP

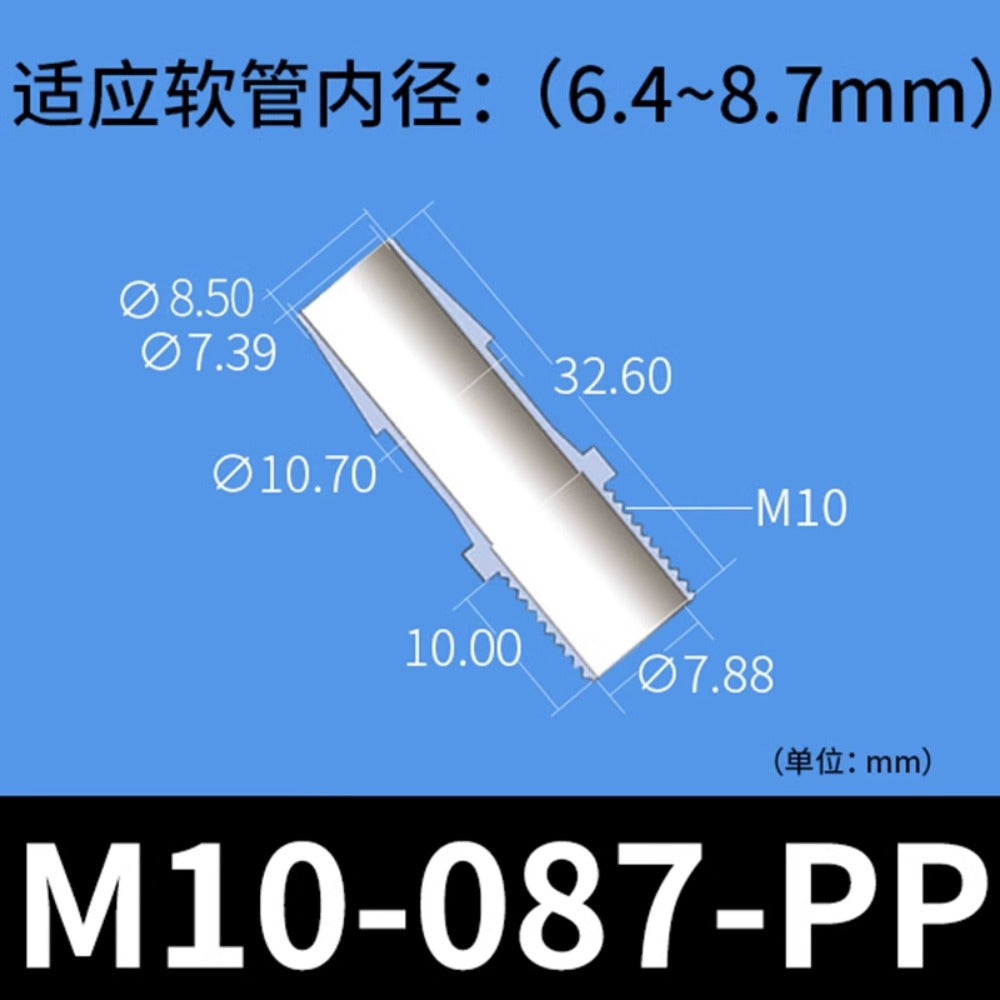

M10-087-PP	6.4~8.7mm	10mm	M10	PP

Barb-to-Male Straight Connector

Barb-to-Male adapters have 6mm short thread and 11mm long thread for option. Short thread is for short female receiving port while long thread is for long female receiving port.These adapters make it easy to connect flexible tubing to any standard M8, M10, 1/4”-28 flat-bottom coned receiving port. Simply thread the adapter into a receiving port and slip flexible tubing over the barbed stem to create a reliable low pressure connection.

Application

Application Note

1. Male straight connector need to match with female connector of same thread.

2. One-Piece Fittings Installation Steps:
a. Choose same female thread connector or receiving port
b. Insert the male screw side into the receiving port until it bottoms out.
c. Connect the barb end side with soft tubing
d. After several uses (especially at high pressure) the male straight connector should be replaced..

3. male straight connector = 1/4-28UNF male + barbed end (OD1.6/2.0/2.5/3.0/3.175/3.2mm hard tubing to ID1.0-5.0 soft tubing )PP or PTFE material, please choose right collocation for your application.

4. PP material is for non-corrosive and weak corrosive liquid; PTFE is for strong corrosive liquid.

Collocated ForeShine Fluid Connectors

1. Female straight connector
2. Straight soft hard docking connector
3. Elbow soft hard docking connector
4. Female Y connector
5. Female cross connector
6. Bulkhead union
