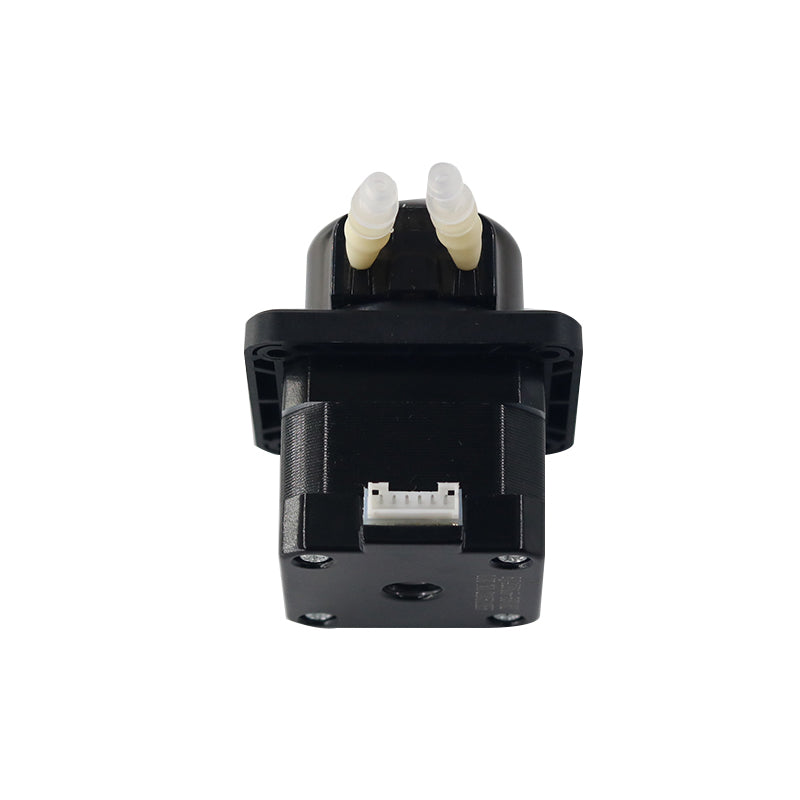

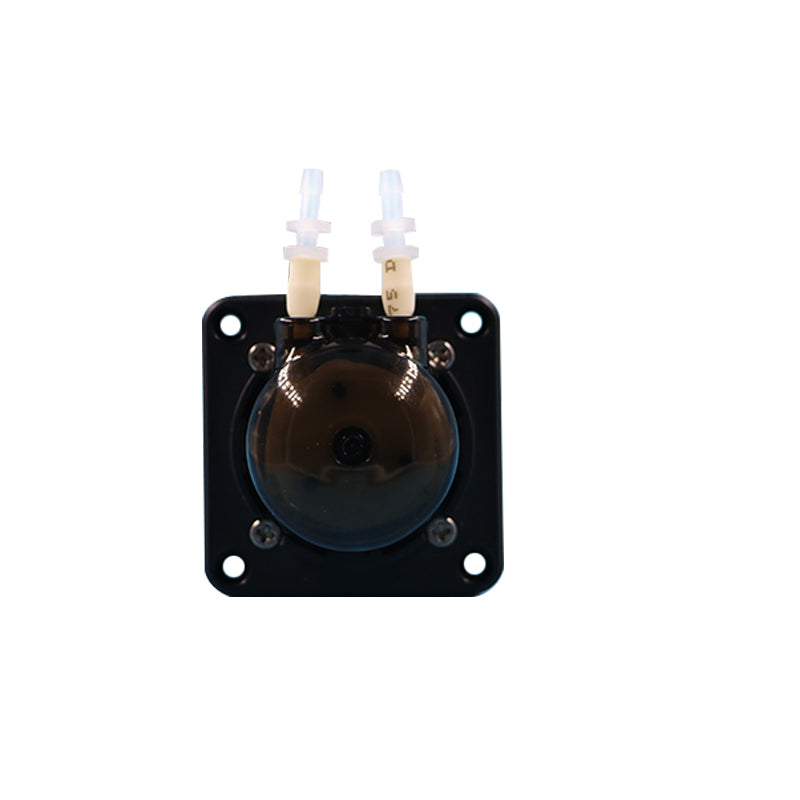

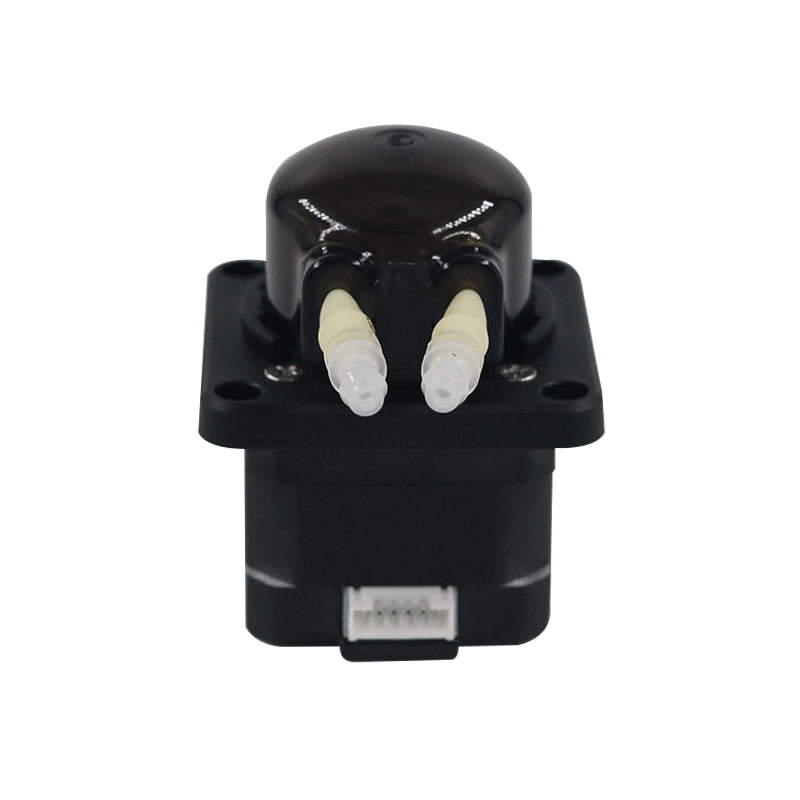

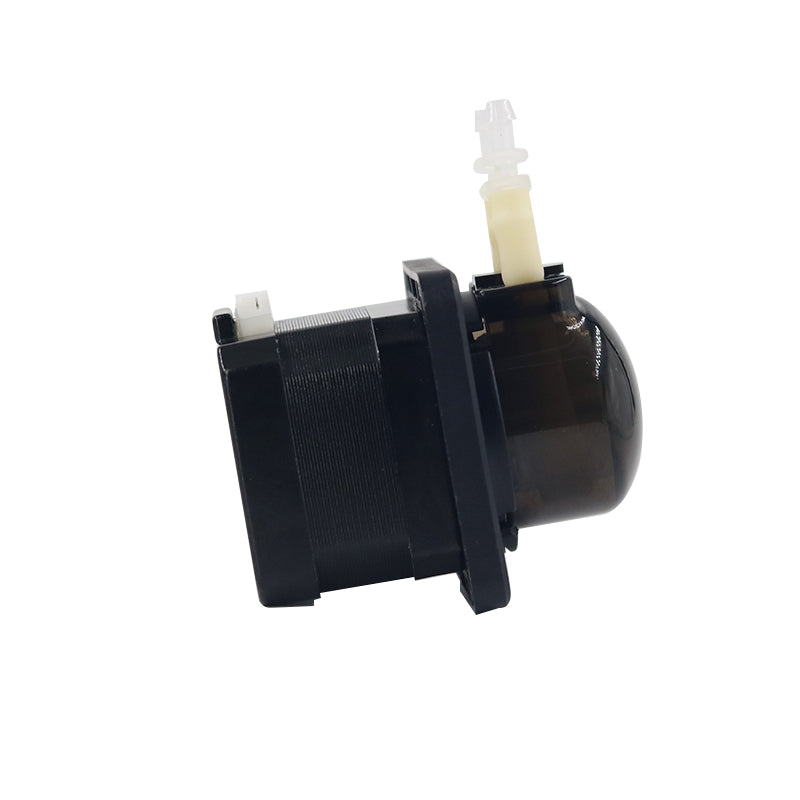

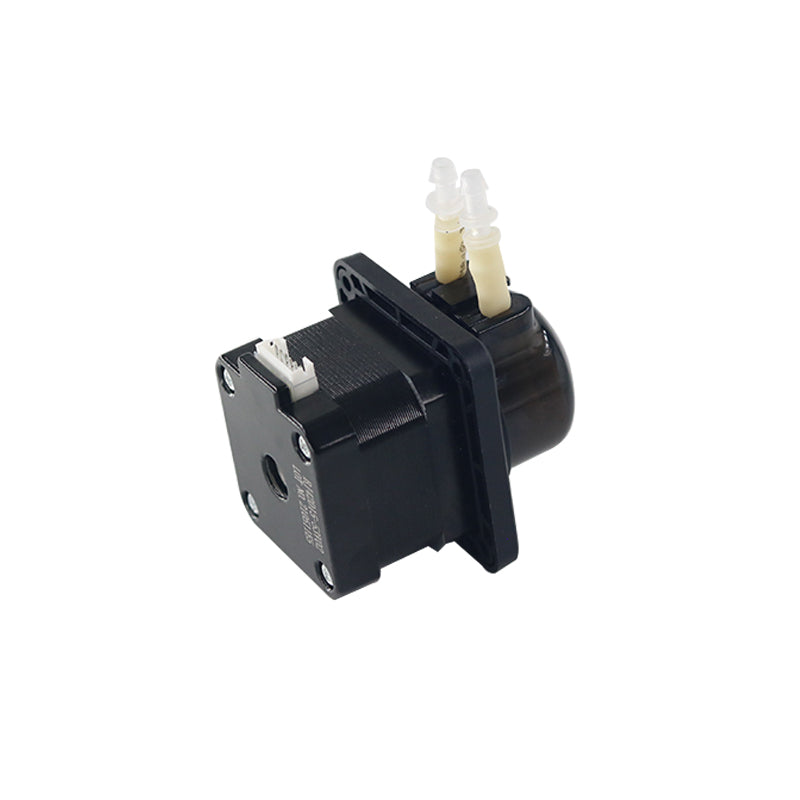

BP200 Stepping Motor Micro Peristaltic Pump - High Precision Water Pump

Discover the precision and reliability of our BP200 Stepping Motor Micro Peristaltic Pump. Ideal for small volume water transfer, this pump offers high accuracy and durability. Perfect for industrial and laboratory use.

Features

✔Fit viscosity， Non-viscosity Liquid transport
✔Compact size, powerful flow rate
✔The surface of the instrument can be placed to pass the ground inspection
✔42 Stepper motor driven, High reliability,Low Noise
✔Can be compatible with two kinds of tubing size, ID*OD, 3*5mm and 4*6mm to realize maximum flow rate reaching to 220ml/min .

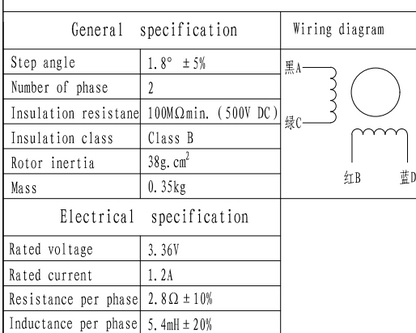

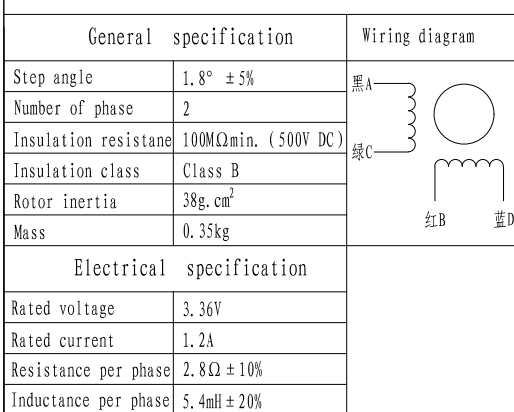

Specification of using 42 Stepper motor

Pump pipe Features

lmport PharMed BPT: No cytotoxicity and hemolytic, resistance to ozone and UV rays,
heat,ozone, acid and alkali resistance, anti - aging anti - oxidation. Service life>1000h

Silicon tube: long life.Operating temperature range -51 ℃~132℃
Low cost, weak acid and alkali resistance, corrosion resistance to
Service life≥200h

※The test method for the life data of all types of pump pipes is that the speed of the
BP200 3 rotor pump head is 400prm under the condition of 20℃ room temperature, pure water, and no pressure, until the pump pipe cracks. The pump head's speed is different, the pump tube life willbe different. The slower the speed of the pump head, the longer the pump tube life. The actual life of the pump tube is affected by factors such as medium, working condition, voltage,etc..
The test data is for reference only. reference only.

Flow rate sheet
