Motor Controller NEMA23 Stepper Motor Driver for Peristaltic Pump

Features

■Compact structure, small size and various functions；

■The driver can automatically adjust the running current according to the load， so as to reduce the temperature and vibration of the motor;

■JBT-BM (voltage type), JBT-BT (communication type), QBT-M1 (pulse type);

■Voltage range +12V～+36V，speed range 0～600rpm

■The driving current has 2 options: 3A low speed and 5A high speed type, and can be set and adjusted through the DIP switch;

■The signal indicator on the circuit board can directly observe the running status of the motor, and the speed of the motor can also be detected through the signal indicator;

■Terminals can choose from a variety of outlet orientations according to customer applications.

Technical parameters

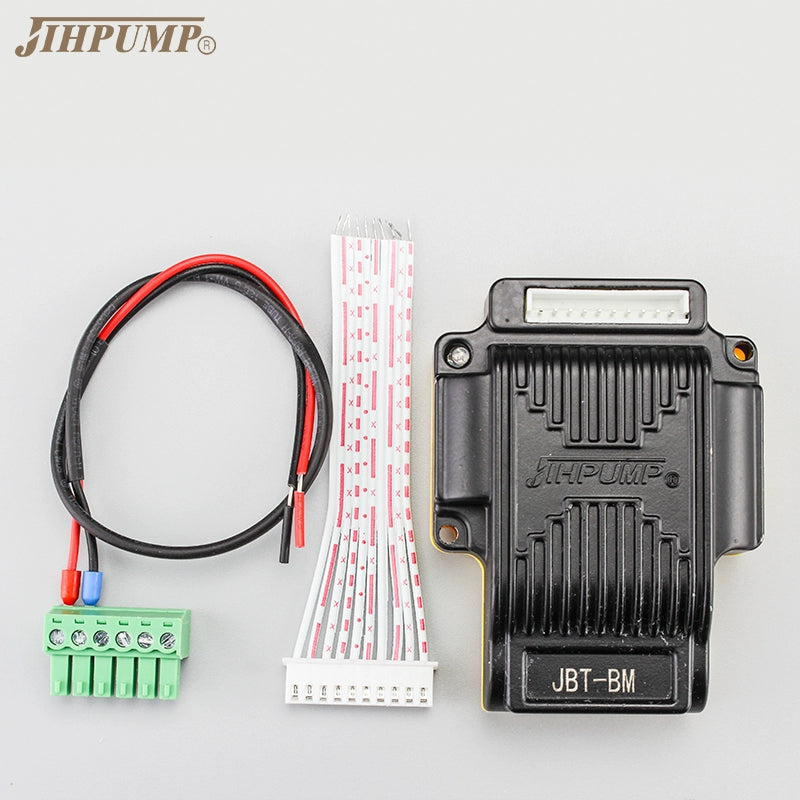

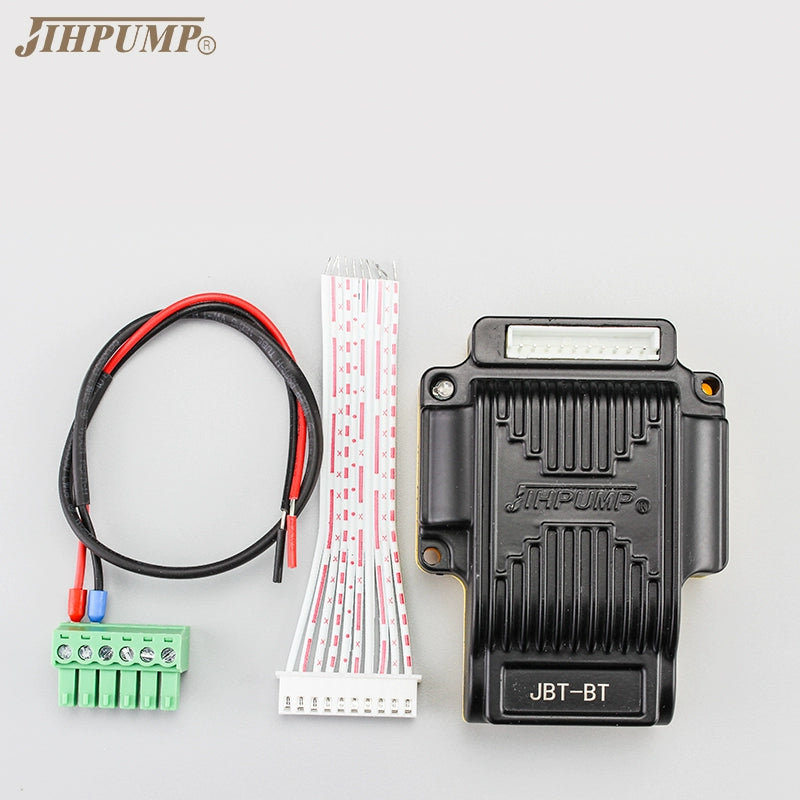

Controller name	JBT-BM	JBT-BT	QBT-M1
Pictures
Power	DC 12～36V,≤4A（Recommended 120W power，suitable for 90% users）；＜54W(working current＜1.5A）
				Working Environment	Temperature 0～60℃, relative humidity less than 85%
				Weight	72g	72g	70g
Adapted motor	57 stepper motor
Speed range	0-600rpm
External control	Built-in potentiometer to adjust speed, dial switch to set maximum speed and drive current	Dip switch to set communication address, communication parameters and drive current	Dip switch sets the number of input subdivisions, VCC voltage and driving current
Functions	On/Off, Speed up/down (Built-in potentiometer, external voltage or current to regulate speed ）	On/Off, Speed up/down ( MODBUS 485 communication  Protocol ）	receiving pulse, direction and enable signals
