603Z Straight Tubeline OEM Peristaltic Pump with High Volume 24v DC or Stepper Motor
603Z Straight Tubeline OEM Peristaltic Pump with High Volume 24v DC or Stepper Motor
Prix habituel
$46.00 USD
Prix habituel
Prix promotionnel
$46.00 USD
Frais d'expédition calculés à l'étape de paiement.
Quantité
Impossible de charger la disponibilité du service de retrait
Product Specification Introduction
Direct Inlet and Outlet Ports / Quick-Release and Easy-Install Pressure Blocks / Adjustable Tubing Gap / High-Precision Conveyance / Three Motor Options / Three Hose Diameter Options / Viscous Fluid Transfer / Enhanced Suction Power
Products Description
|
Pump model:
|
603Z
|
|
Pump type:
|
OEM peristaltic pump: peristaltic pump for OEM manufacturers, need to be wired by users
|
|
Flow rate:
|
Max 3095 ml/min
|
|
Optional motors:
|

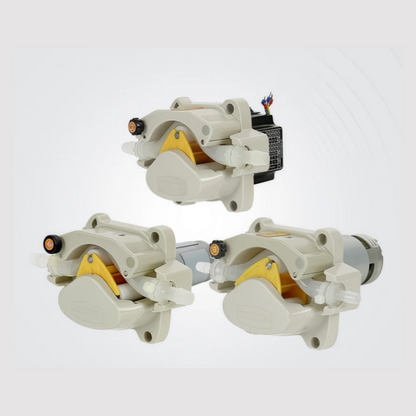

24V DC geared motor, 12V or 24V DC geared planetary motor, stepper motor
|
|
Optional tubes:
|
Silicone tube, Saint Gobain A-60-F tube, A-60-G tube, PharMed BPT tube, Chem durance tube
|
|
Features:
|

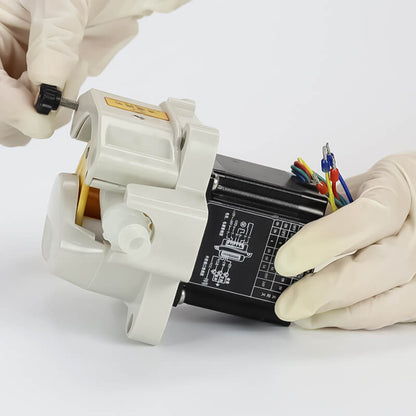

Straight-tube line peristaltic pump, capable of fine-tuning tube gap; Pull-type spring occlusion structure can realize easy replacement of tubes.
|
|
Common applications:
|
1. Detergent delivery: washing machines,dishwashers
2. Analytical instrument: analytical test instrument media pumping
3. Printing equipment: ink delivery
4. Food machinery: such as beverage delivery
|
|
Application industries
|
Medical, pharmaceutical, environmental, analysis, lab, printing, washing, household appliances, food and beverage, industrial machinery
|
|
Remark:
|
1.OEM pump users need to connect power supply, wire and installate, which is suitable for equipment manufacturers.
2. Complete system pump - with casing, power supply plug and operation display, user can directly operate once the power is connected, which is preferred choice for end customers. 3. Simple peristaltic pump: adjustable speed, with plug, free installation. |
