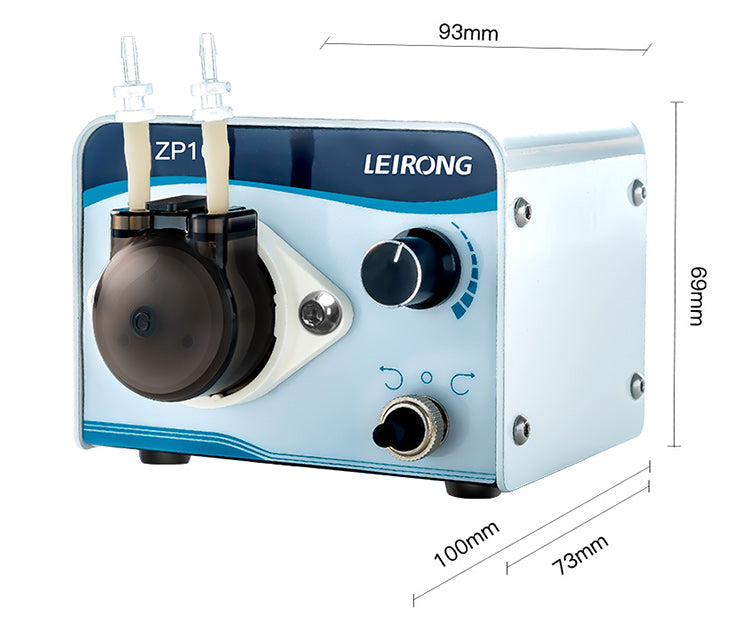

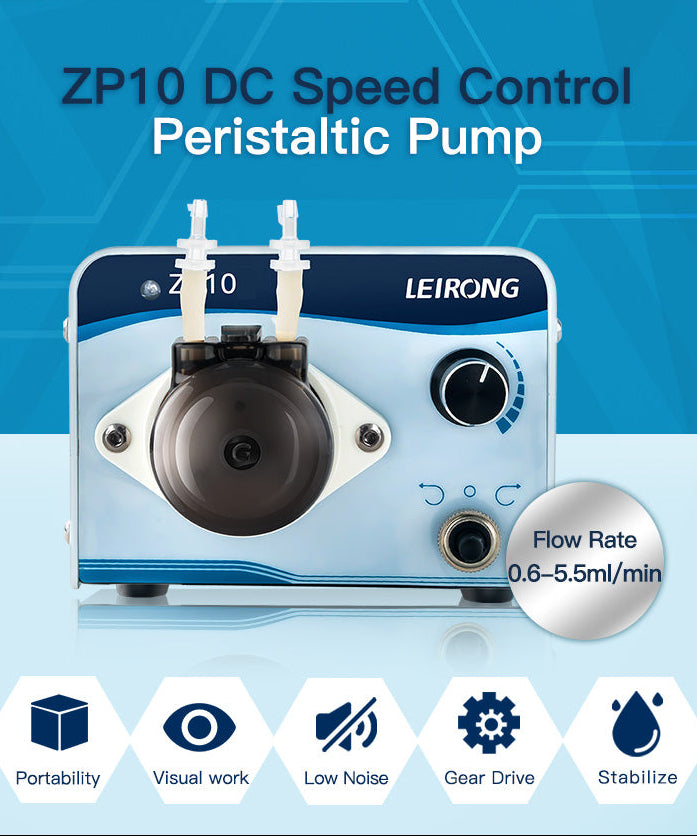

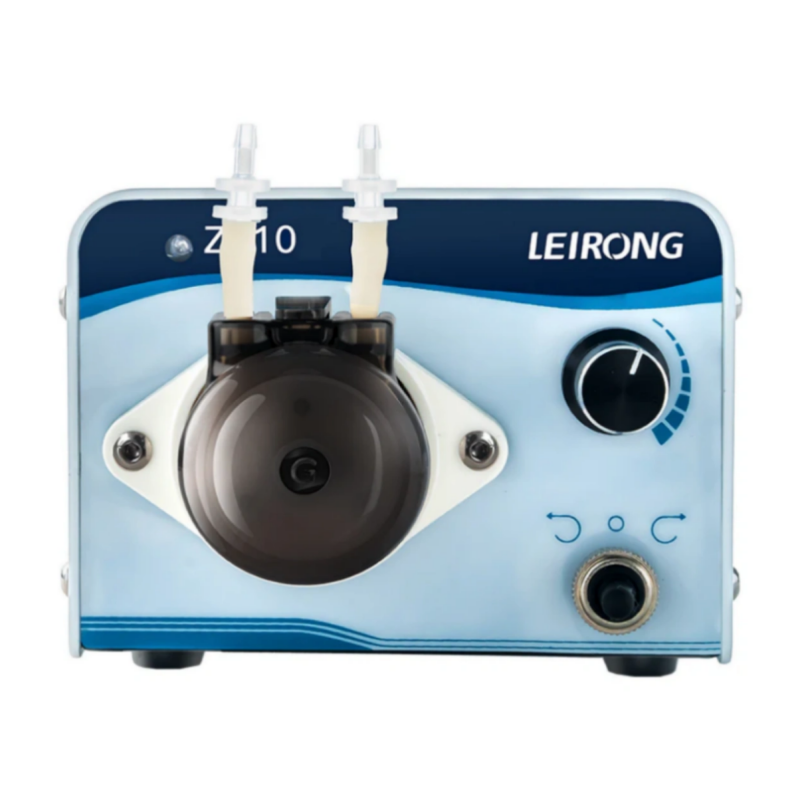

ZP10 DC Speed Control Peristaltic Pump – 24V Knob-Adjustable Mini Dosing Pump

ZP10 DC Speed Control Peristaltic Pump-Data Sheet

Highlights

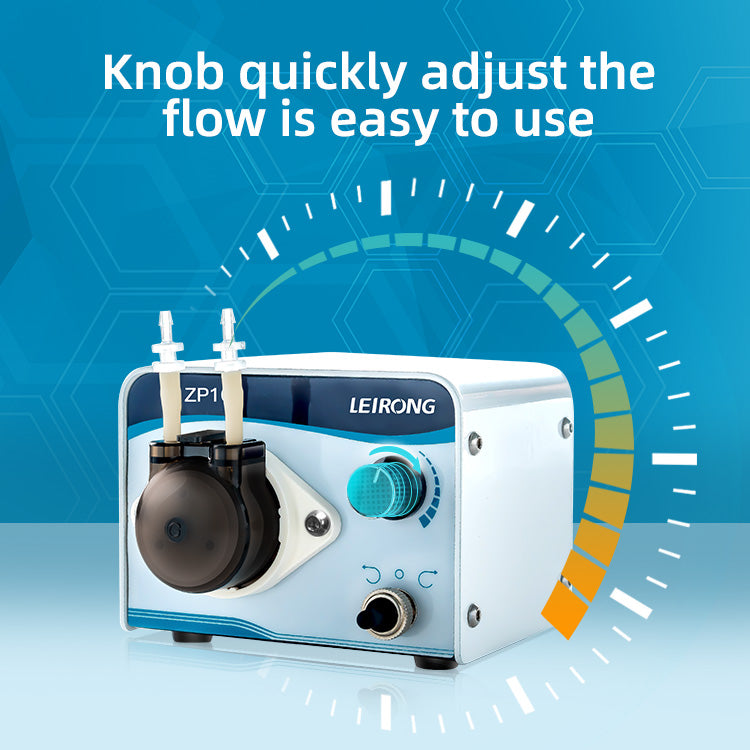

• Stepless knob speed regulation, extremely easy to operate
• Supports forward and reverse liquid transfer at any time
• Equipped with brushed DC geared motor for long service life and low operating noise
• Pump tube and pump head can be replaced quickly without tools
• 3-roller synchronous structure with minimal rolling friction, effectively protects the tubing
• Transparent pump cover for clear visibility; shell available in multiple colors
• Powered by safe 24V DC low voltage
• Flow rate fully adjustable
• Optional FDA-compliant food-grade tubing

Specifications

• Flow rate: 0.6 – 5.5 ml/min
• Speed adjustment: Knob control
• Motor: DC brushed
• Voltage: 24V DC safe low voltage
• Power consumption: 15 W
• Noise level: ≤ 60 dB
• Rollers: 3
• Compatible tubing: Silicone or BPT
• Housing: Sheet metal

Applications：

Laboratory quantitative transfer, medical equipment, food & beverage dispensing, chemical dosing, automated filling lines, DIY projects, etc.
