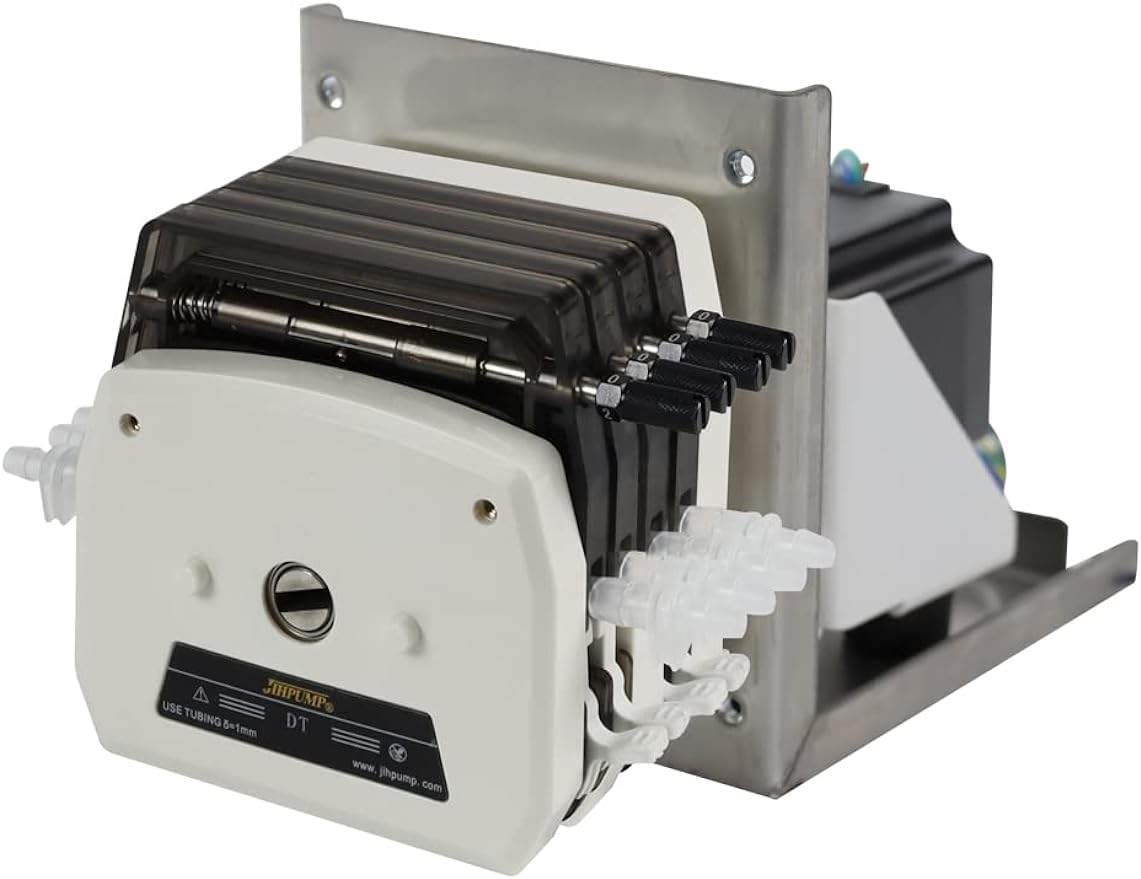

DT/JBT Multi-Channel Stepper Motor Peristaltic Pump | 24V | Lab & Analytical
DT/JBT Multi-Channel Stepper Motor Peristaltic Pump | 24V | Lab & Analytical
Regular price
$170.00 USD
Regular price
$170.00 USD
Sale price
$170.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Product parameters
| Product Name | DT/JBT Easy Mounting Bracket Peristaltic Pump |
| Motor Type | 57 Stepper motor |
| Flow Rate | Single channel ≤50ml/min |
| Voltage and Current | DC 24V, 3A |
| Power | ≤36W |
| Motor Life | 5000~20000 hours |
| Weight | 2.6KG |
| Outlet Pressure | ≤0.17MPa |
| Working Environment | Temperature: 0~60℃, Humidity: ＜85%RH |
| Noise | ≤58dB |
| Main Material | Support: Polyether sulfone, Roller: POM, Wheel frame: 304 stainless steel, L-bracket: 304 stainless steel |
| Tube Size | ID1*OD3mm, ID2*OD4mm, ID3*OD5mm |
| Tube Type | Silicone tube, BPT tube |
Common Applications: Analytical instruments, IVD filling, medical instruments, laboratories, grinding machines, etc.
Applications Industry: medical diagnosis,Environmental protection instrument,Analytical Instruments,inkjet ink,washing cleaning,food and drink,Experimental research,Pharmaceutical machinery,Smart Appliances,industrial machinery etc.

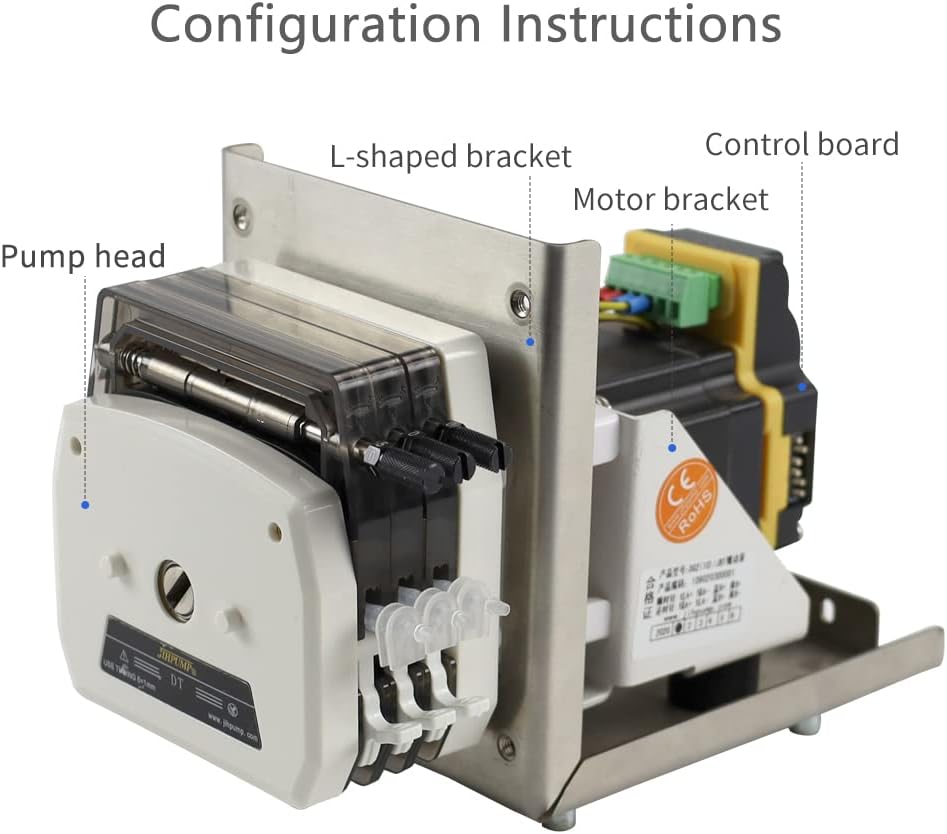

Product Configuration

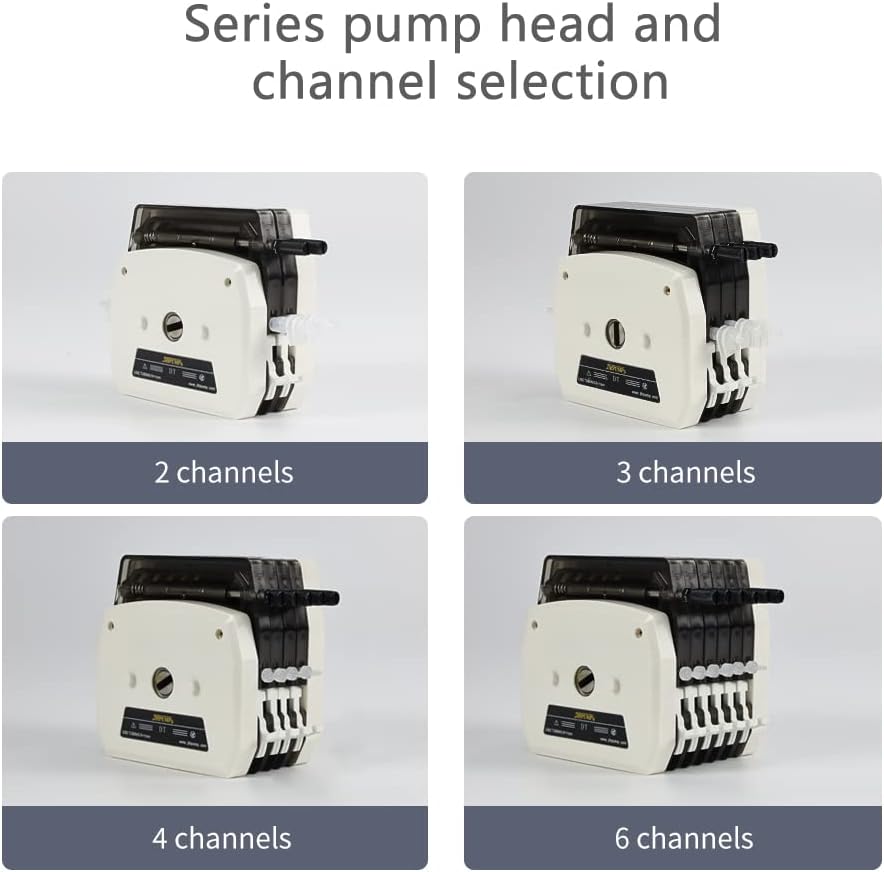

- Series pump head and channel selection:
DT pump heads are available in 2/3/4/6 multiple channels and 2 pump heads in series.
- Installation method:
L bracket front or bottom installation.
CE certification (passed electrical safety certification)
IS09001 quality management system certification
ROHS certification (through the use of hazardous substances in the product testing)
