BZ1203 Large Flow Peristaltic Pump 19.4L/min - Dual Heads Industrial
BZ1203 Large Flow Peristaltic Pump 19.4L/min - Dual Heads Industrial
Regular price
$258.00 USD
Regular price
$374.00 USD
Sale price
$258.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Common Applications: Filling production line ，Laundry dispenser , Adding soup and seasoning machine , Drone filling station, washing cleaning , food and drink ect .
Applications Industry: medical diagnosis ，Environmental protection instrument , Analytical Instruments , inkjet ink , washing cleaning , food and drink ，Experimental research，Pharmaceutical machinery，Smart Appliances ，industrial machinery etc ， peristaltic pump , peristaltic pump 24v.

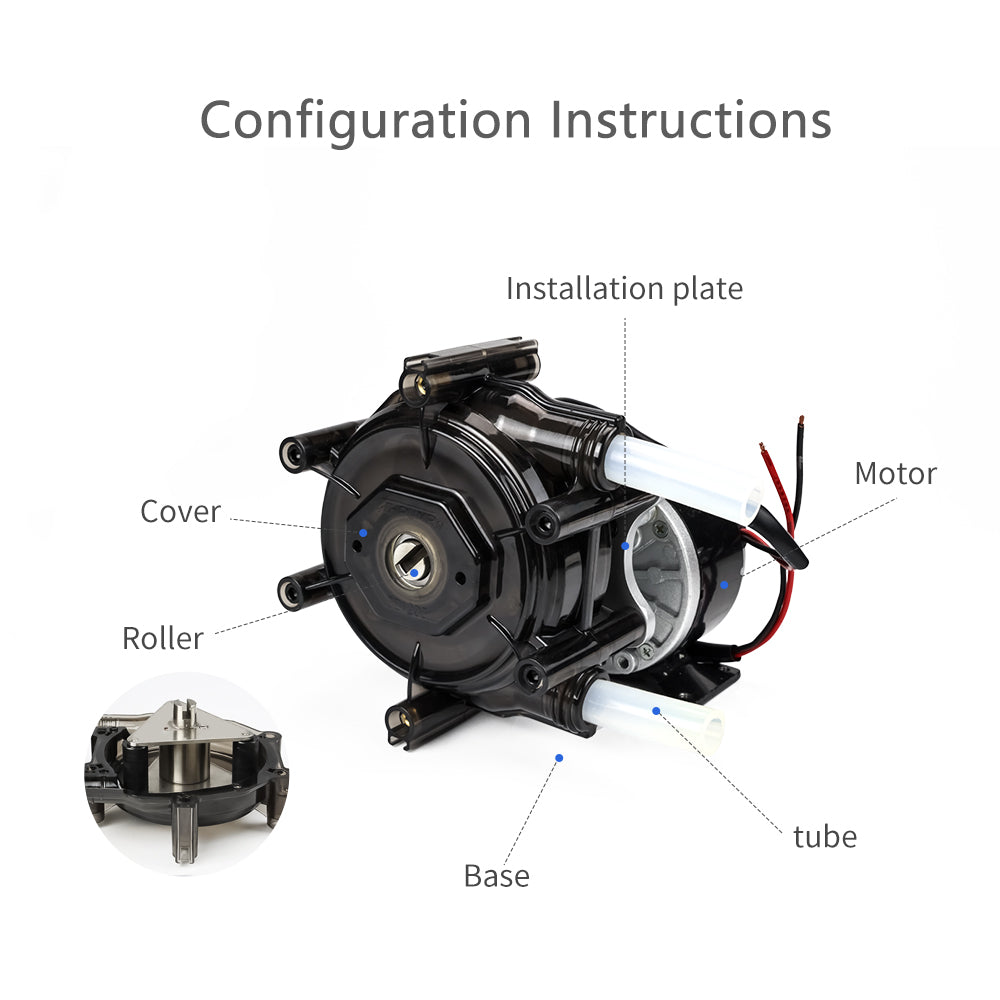

Work roller
3 roller structure, smooth conveying, low pulse , peristaltic pump , large flow
Pump cover color
Translucent pump cover for easy observation of pump operation 3 colors of pump cover to meet different color matching, easy to
visualize management.
Connection Mode
The hose leads directly to the pump head, and the pipeline connection configures the required joints according to the needs of the system .
Installation method
The base comes with mounting holes.
Single or double pump heads optional
Satisfy the large flow of the soup maker and the conveying of high-viscosity and concentrated paste, Fully enclosed structure, increase and thicken the pump tube The fully enclosed structure effectively protects the pump tube and prolongs the life of the pump tube; Large diameter pump body adopts pump tube with wall thickness of 3.3mm to deliver larger flow and pressure.
Three steps diagram of pump casing disassembly
Unscrew the screw - take off the pump cover - install the pump tube.
