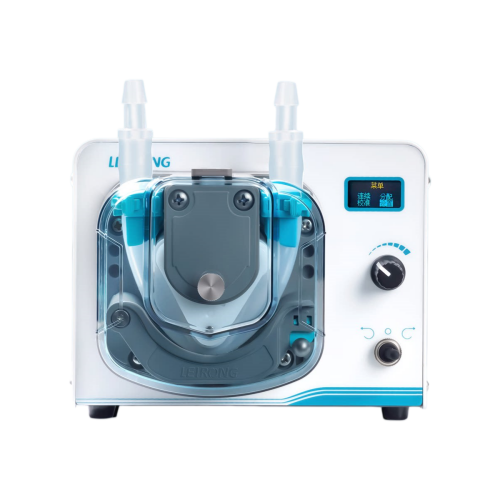

ZP2000ST Intelligent Peristaltic Pump | 0.4-2000ml/min Variable Speed, 57 Stepper Motor
ZP2000ST Intelligent Peristaltic Pump | 0.4-2000ml/min Variable Speed, 57 Stepper Motor
Couldn't load pickup availability
ZP2000ST Intelligent Peristaltic Pump-Data Sheet
The ZP2000ST Intelligent Variable Speed Peristaltic Pump is a high-performance, large-flow intelligent peristaltic pump designed for precise liquid transfer with simple and convenient operation. Driven by a 57 stepper motor, it offers a wide flow range of 0.4-2000ml/min and supports forward and reverse direction. It is widely used in laboratory research, biopharmaceuticals, medical analysis, aquarium titration, water quality sampling, and dispensing & filling applications.
Key Features
- Large flow rate design, ideal for pumping viscous fluids

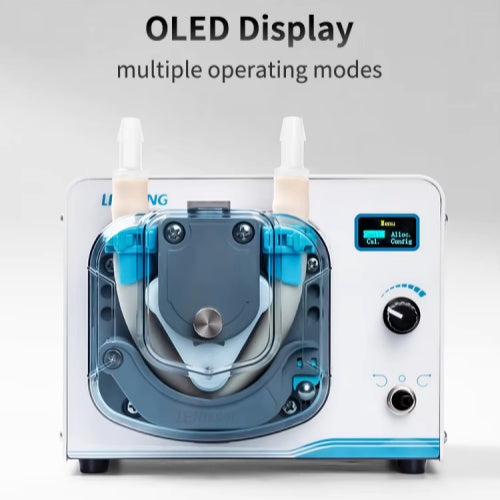

- OLED display with multiple working modes

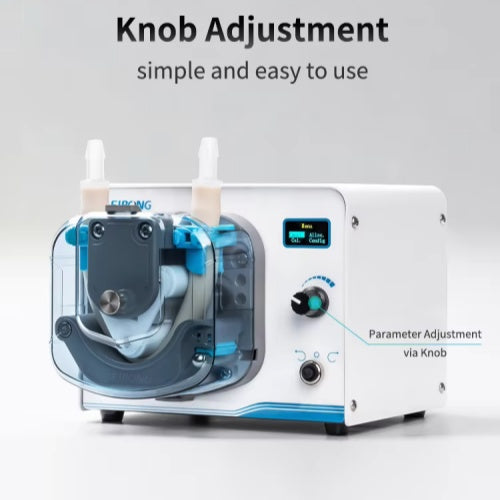

- Simple knob adjustment for easy operation

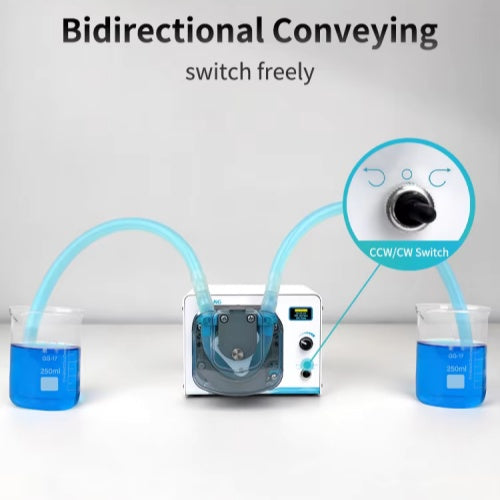

- Supports forward and reverse liquid transfer
- Spring compensation structure extends pump tube life and prevents backflow
- Transparent housing for clear visibility during operation
- Customizable pump casing color
- 24V DC power supply with safe low voltage
- Stepper motor drive for precise control and low noise
- Easy tube change with adjustable direction
Product Specifications
- Product Name: ZP2000ST Intelligent Variable Speed Peristaltic Pump
- Flow Rate: 0.4-2000ml/min
- Motor Type: 57 Stepper Motor
- Rated Voltage: 24V DC, Safe Low Voltage
- Speed Control: Knob + Timing + Quantitative
- Power: 72W
- Suction / Lift: 3-5 meters
- Pump Tube Life: Silicone tube ≈200 hours; Norprene tube ≈1000 hours
Applications
- Medical Analysis
- Biopharmaceuticals
- Aquarium Titration
- Laboratory Research
- Dispensing & Filling
- Water Quality Sampling
Why Choose ZP2000ST?
This peristaltic pump combines large flow capacity, intelligent control, and high safety in one unit. The OLED display provides clear operation status, while the knob makes adjustment extremely simple. The transparent housing allows real-time monitoring, and the spring compensation structure significantly extends tube life and prevents backflow. With a safe 24V DC power supply, it is the ideal choice for laboratories, pharmaceutical, and industrial liquid transfer applications.
