ForeShine -Fluidic Solution

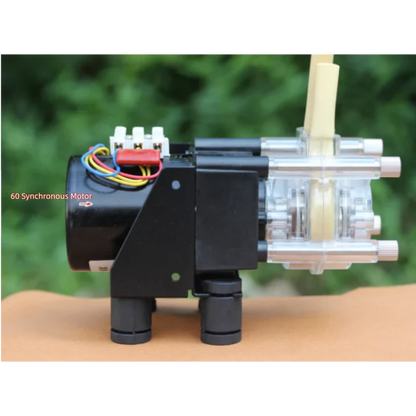

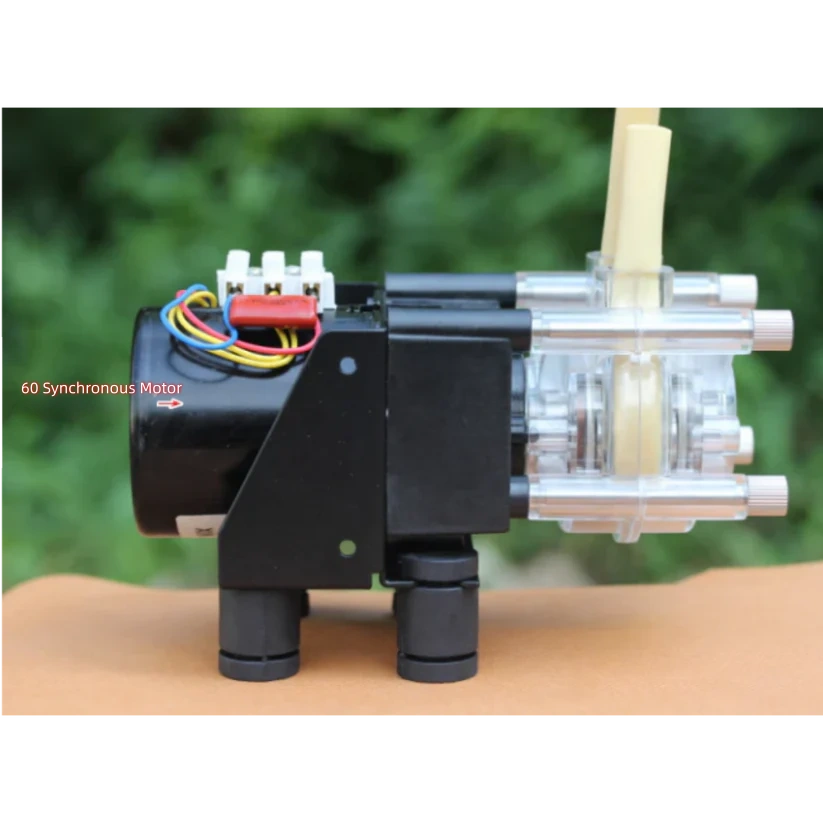

OEM Peristaltic Pump with Stepper Motor DC 24V Chemicals Dosing Pump COD Detection

OEM Peristaltic Pump with Stepper Motor DC 24V Chemicals Dosing Pump COD Detection

Regular price $55.15 USD
Regular price $68.94 USD Sale price $55.15 USD
Sale Sold out
Shipping calculated at checkout.


  • Flow range: 0- 1080ml/min (pump tube: inner diameter 7.9mm outer diameter 11.1mm, flow rate per revolution 3.8ml)
  • Applicable pump tube: wall thickness 1.6mm pump tube, maximum outer diameter 12mm, standard pump tube: inner diameter 7.9mm outer diameter 11.1mm
  • The pump cover is fixed by hand-twist screws, easy to disassemble and replace the pump tube quickly
  • The pump tube fixing groove is designed to prevent the pump tube from being damaged due to deviation
  • Stainless steel wheel frame + ball bearing, quiet and long life
  • The handle and key screws are made of stainless steel, which is rust-proof and corrosion-resistant
  • Optional DC geared motor, synchronous motor, stepper motor
  • Shell material: PC
  • Roller material: stainless steel + ball bearing

    Newly upgraded and improved products, aiming to resolve many problems found in peristaltic pumps on the market, are improved one by one. For example: the metal parts are not rust-proof, corroded, noisy, the roller wears too fast, and the roller part is sunken; More or less bothering you.

    Typical application:
    Detergent delivery for washing machines and dishwashers, sampling for analysis and testing instruments, ink delivery, ice cream extraction, beverage machines,
    Warewashing Equipment, Laundry Equipment Laundry Equipment


Parameters ,with stepper motor





Flow rate


Tubing No.

16#、25#、 17#、


Coffee machine, water quality online analyzer OEM Pump

Shell material


Roller material


Number of rollers


Adjustment mode:

fixed speed, optional speed

Power supply:


Power consumption:


Working environment: temperature

-10~40℃, relative humidity < 80%

Motor options:

Synchronous motor, ordinary deceleration motor, DC planetary motor, stepping motor.


    AB53 pump head with 57 stepper motor ,Flow rate sheet for reference,

    (test with 57 stepper motor, water, only for reference)

    Tube No Tube ID*WT Flow rate
    NO.16# ID3.2*Wall 1.6mm 0.082-492 ml/min
    NO. 25#  ID4.8*Wall 1.6mm 0.1-840 ml/min
    NO. 17# ID6.4*Wall 1.6mm 0.1-1080  ml/min




    1unit* pump+DC OR stepper motor (equipped with tubing size as you placed)
