Multi-Channel Intelligent Peristaltic Pump - Medical Grade Metering System with Modbus

The price shown for each option is for one pump of the selected model.

Please purchase the quantity of pumps you need.

• The picture is 6 channels + a central contollers (each channels comes a stepper motor ,) ,You can choose the channels numbers as you need .

• Above pictures are the English operating display,
• You can adjust the motor speed, 0.1-300 rpm, and display the flow rate corresponding to the speed.

• You can set the specified flow rate, for example: specify the output of 10ml

• You can set the timing and quantitative output, for example, every 1 second, 2ml of liquid is discharged, and the cycle ends 3 times (the value can be set according to the demand)

• You can also set, for example, every 1 second, run at 2ml/min for 3 seconds, and end with 4 cycles.

• You can calibrate the flow. Accurate quantification is only possible after calibration.

• You can manage the channels in groups, pumps can belong to different groups, and can be started and stopped at the same time/forward and reverse, etc. (for example, channel 1 and channel 3 are a group)
• The menu is easy to understand and operate.

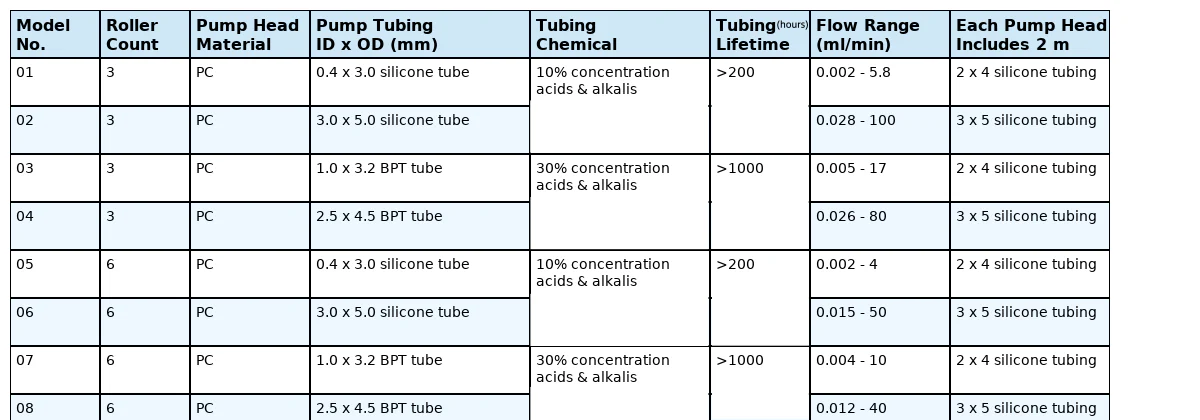

• Above picture, is the models for choosing, we take the 08 as a sample , the parameters of it as below:
• The pump rollers is 6,
• Pump head material is PC transparent,
• comes tubing ID2.5*OD4.5 Pharmed BPT, can resisit 30% concentration corrosive,
• The service life of Phamred BPT can over 1000 hours
• Flow rate 0.012-40ml/min adjustable.
• Each pump comes with silicon tube size ID3*OD5 ,2 meters for free. ( such as, you order 4 pumps, then comes 8 meters silicon tube for free) . Pls note this silicone tube cao only for external connection, it can not resist the corrosive liquid .
• RPM resolution: 0.1 rpm
• RPM: 0.1-300RPM
• The pump can be capable of pulsatile flow with droplet control

Welcome to send us messages if you are interested in other models but unclear there.

• Note: the price is only for one channel,. for example: if you need 4 channels, then add 4 pcs to your cart, then add a central control.

Packing:

• Pump channel * 1 ( or 2 or 3 or 4... according to the pcs you order)
• Central controller *1 pcs
• Power supply *1 pcs( AC110-240V available)
• Silicon tubing *2 meters ( for each channel)
