High-Flow Peristaltic Pumps in Practice: Observations from a 19.4 L/min Model

An overview of high-flow peristaltic pumps capable of up to 19.4 L/min, covering key design features, technical specifications, and typical industrial applications in filling, viscous dosing, and large-volume transfer tasks.

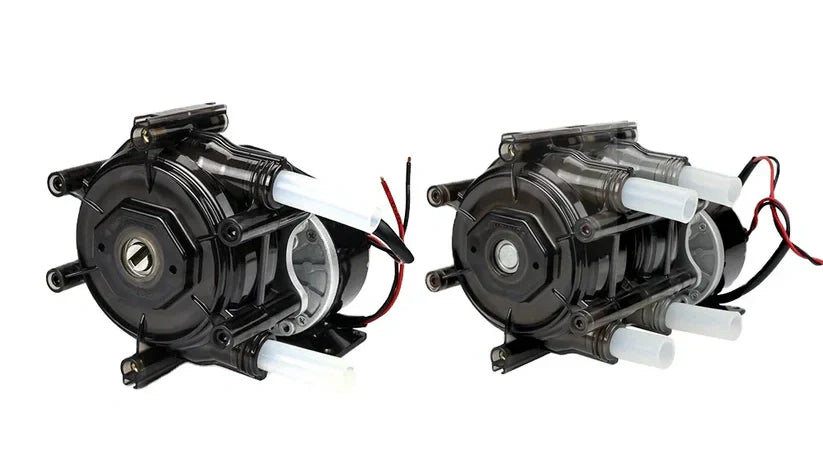

In industrial liquid handling, processes that require reliable transfer of larger volumes—particularly when dealing with viscous or shear-sensitive fluids—often expose limitations in conventional pump types, such as cavitation, frequent seal replacement, or extended cleaning times. Peristaltic pumps address many of these issues through their design, where the fluid contacts only the tubing. This article examines a representative high-flow model (commonly referenced as BZ1203-class, double-head configuration) rated at up to 19.4 L/min, focusing on its structural characteristics and real-world usage patterns.

Principal Design Elements

The pump employs a three-roller occlusion system. Compared with two- or four-roller arrangements, this configuration produces a more continuous flow with reduced pulsation, which helps maintain uniformity when pumping fluids of moderate to high viscosity.

The pump head is fitted with a translucent cover, allowing operators to monitor tubing condition, detect air ingress, or observe wear without stopping the process or removing components. The fully enclosed pump body limits exposure of the tubing to external contaminants, contributing to longer service intervals.

Tubing is typically specified with a wall thickness of approximately 3.3 mm and larger bore sizes (such as the 82# series). These dimensions enable higher flow rates while providing improved resistance to collapse under suction or moderate backpressure.

Technical Specifications Summary

• Reference maximum flow rate: 19.4 L/min (double-head setup, 82# tubing, room-temperature clean water, ≈330 rpm)
• Single-head flow is generally about half, depending on exact configuration
• Drive: 24 V DC geared motor (speed governor optional)
• Power consumption: 120–168 W
• Weight: ≈5.7 kg (double-head), ≈4.3 kg (single-head)
• Typical outlet pressure: ≈0.27 MPa
• Operating conditions: 0–60 °C, relative humidity ≤85%
• Estimated motor service life: 800–1500 hours under standard loading

Actual delivered flow will vary with fluid viscosity, line restrictions, suction conditions, and tubing age. It is advisable to include a safety margin during system design.

Common Application Areas

Pumps of this capacity class are frequently deployed in:

• Automated filling lines for sauces, syrups, detergents, or similar products
• Chemical dosing stations in commercial laundry and cleaning equipment
• Food-processing systems for metered addition of concentrates, marinades, or pastes
• Specialized transfer stations, including liquid payload filling for drones or similar equipment
• Industrial cleaning installations and environmental sampling or analytical instrumentation

A primary benefit remains the complete isolation of the fluid path: simply replacing the tubing allows rapid product changeover with minimal risk of cross-contamination or residue carryover.

Tubing Replacement and Installation Notes

The tubing exchange procedure is straightforward:

1. Loosen the retaining screws
2. Remove the cover
3. Withdraw the used tubing and install the replacement, ensuring even seating at both ends
4. Reattach the cover and secure

The operation typically requires 5–10 minutes. The base plate includes pre-drilled mounting holes for secure attachment to machinery frames or skids. Connections are generally barb-style for direct hose attachment, with the option to fit quick-disconnect fittings where needed.

Practical Performance Observations

• Operating noise is dominated by gear transmission and remains within acceptable limits for most industrial settings.
• The three-roller arrangement keeps pulsation low, often eliminating the need for downstream dampeners in many applications.
• Tubing durability varies significantly: clean, low-viscosity fluids may yield service lives of several months, whereas abrasive suspensions or highly viscous materials can reduce it to weeks—maintaining spare tubing is recommended.
• Double-head versions suit applications requiring higher throughput or built-in redundancy; single-head units are more compact for moderate demands.

For processes that demand stable, high-volume liquid transfer while preserving product integrity and simplifying sanitation, high-flow peristaltic pumps in this class offer a practical and increasingly adopted solution. Final selection should always incorporate on-site testing with the intended medium and conditions.
