The Ultimate Guide to Soft-to-Hard Tube Connectors: Installation and Applications

Introduction

Fluid control systems require reliable connections between different types of tubing. Soft-to-hard tube connectors (also known as barb fittings or barbed connectors) are essential components in laboratory, industrial, and medical applications where transitioning between flexible and rigid tubing is necessary. This comprehensive guide explains how to properly use these connectors, ensuring leak-free connections and optimal system performance.

## What Are Soft-to-Hard Tube Connectors?

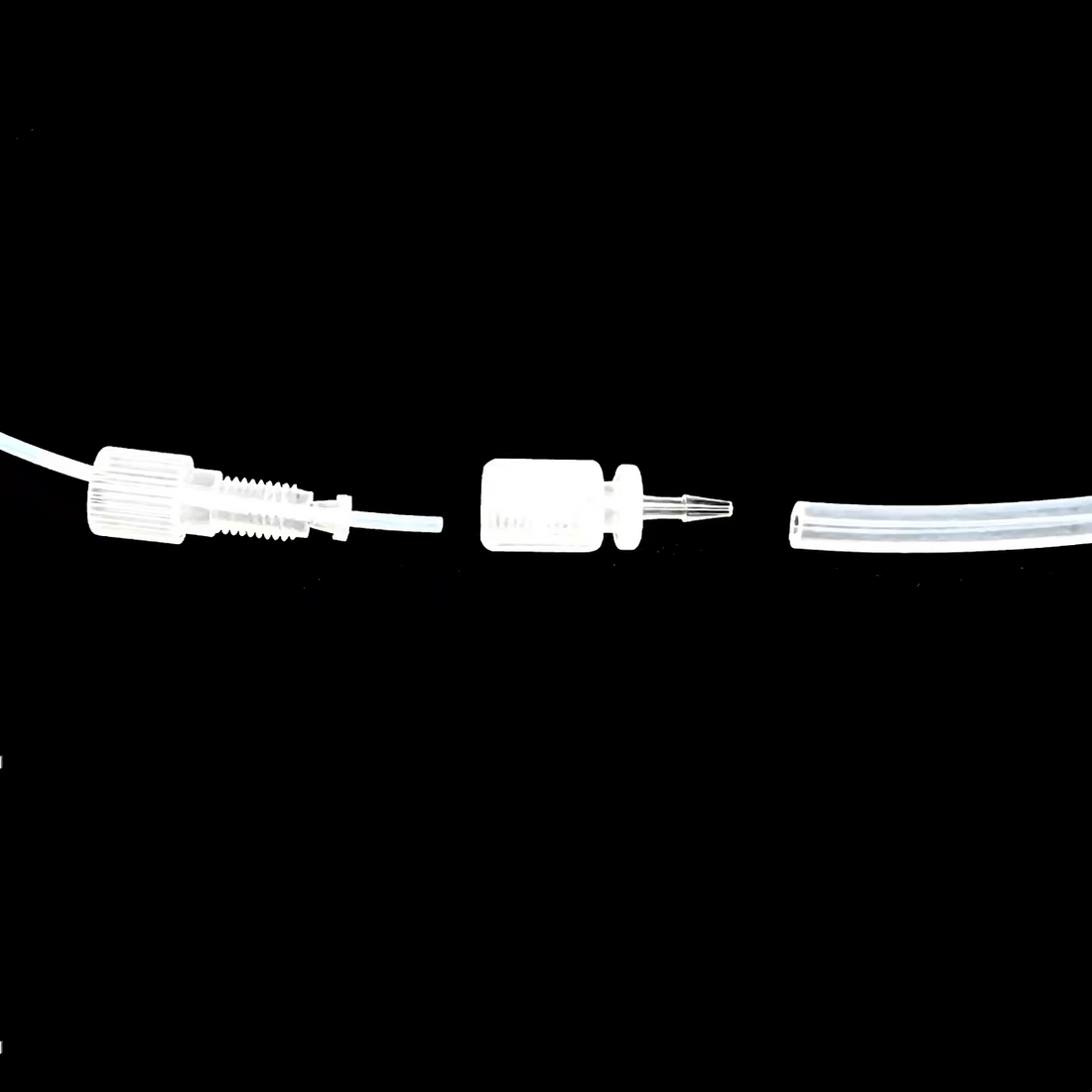

Soft-to-hard tube connectors are specialized fittings designed to create secure connections between flexible tubing (like silicone, PVC, or pharmed) and rigid tubing or equipment ports (such as glass, metal, or hard plastic). These connectors typically feature:

- A barbed end that inserts into soft tubing
- A threaded or smooth end that connects to hard tubing or equipment
- Food-grade polypropylene (PP) construction for most laboratory and food applications
- Various sizes to accommodate different tube diameters (1/16" to 1/2")

## Step-by-Step Installation Guide

### Materials Needed:
- Soft-to-hard tube connector
- Flexible tubing
- Rigid tubing or equipment port
- Tubing cutter or sharp scissors
- Warm water (optional)
- Clamp (optional for high-pressure applications)

### Installation Process:

1. **Prepare the Tubing**
   - Cut the flexible tubing end squarely using a tubing cutter or sharp scissors
   - Ensure the cut is clean without frayed edges
   - For rigid tubing, make sure the connection point is clean and undamaged

2. **Warm the Flexible Tubing (Optional)**
   - For stiffer tubing materials, briefly immerse the end in warm water
   - This increases flexibility and makes insertion easier
   - Do not use excessive heat that might damage the tubing

3. **Insert the Barbed End**
   - Hold the connector firmly by the center section
   - Push the barbed end into the flexible tubing with a twisting motion
   - Continue until the tubing covers all barbs completely

4. **Connect to Rigid Tubing**
   - For threaded connections: Apply appropriate thread tape if needed
   - Screw the connector into the threaded port until hand-tight
   - For smooth connections: Push the connector into the rigid port
   - Ensure alignment is straight to prevent leakage

5. **Secure the Connection (Optional)**
   - For high-pressure applications, add a clamp to the flexible tubing
   - Position the clamp just behind the last barb
   - Tighten securely but avoid crushing the tubing

6. **Test the Connection**
   - Run fluid through the system at low pressure
   - Check for leaks at both connection points
   - Gradually increase to operating pressure while monitoring

## Common Applications

Our soft-to-hard tube connectors excel in various applications:

- **Laboratory Equipment**: Connecting peristaltic pumps to rigid sampling containers
- **Medical Devices**: Joining flexible delivery tubes to rigid instrument ports
- **Food Processing**: Creating sanitary connections between flexible transfer lines and rigid processing equipment
- **Aquarium Systems**: Connecting flexible tubing to rigid filters and pumps
- **Industrial Fluid Transfer**: Joining different tubing types in chemical processing systems

## Troubleshooting Common Issues

### Leaking Connections
- Ensure tubing fully covers all barbs
- Check for cuts or damage in the flexible tubing
- Verify proper thread engagement for threaded connections
- Consider using PTFE tape for threaded connections

### Difficult Insertion
- Try warming the flexible tubing
- Ensure you're using the correct connector size
- Apply a small amount of water as lubricant (avoid oils)
- Check for burrs on the connector barbs

### Tubing Disconnection
- Use appropriate clamps for high-pressure applications
- Ensure tubing is pushed completely onto all barbs
- Consider using connectors with more or sharper barbs
- Verify you're not exceeding pressure ratings

## Maintenance and Care

To ensure long-lasting performance:

- Regularly inspect connections for signs of wear or stress
- Replace tubing that shows cracking, discoloration, or hardening
- Clean connectors periodically with appropriate solutions
- Store spare connectors in clean, dry conditions

## Conclusion

Proper installation of soft-to-hard tube connectors is crucial for maintaining system integrity and preventing leaks. By following this guide, you can ensure reliable connections in your fluid handling systems. Our high-quality polypropylene connectors provide excellent chemical resistance and durability for a wide range of applications.

For more information about our complete range of fluid connection solutions, visit our product catalog or contact our technical support team.
