How to Choose a Precision Peristaltic Pump for Lab and Industrial Fluid Handling

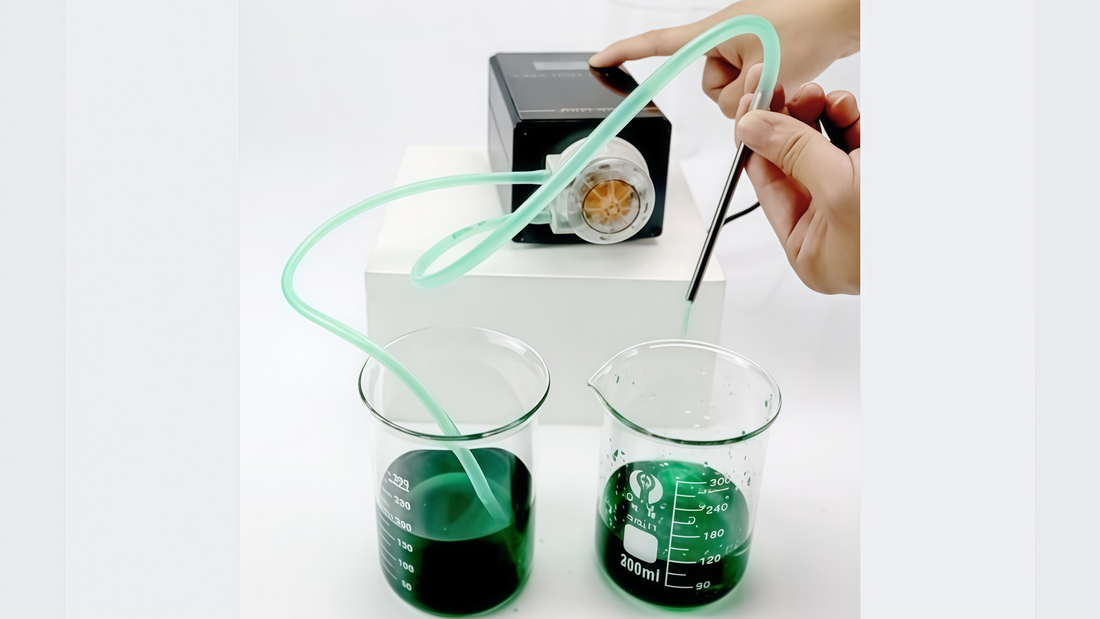

Working with liquids in a lab or on the production floor can be tricky. You need accurate dosing, no contamination, and equipment that’s easy to operate day after day. Many people searching for a “precision peristaltic pump” or “laboratory peristaltic pump with timed dispensing” often feel overwhelmed by the options. Today I want to share some practical thoughts on what really matters when choosing such a pump, drawing from real-world experiences with models like the KY-300EL series.
Common Challenges When Handling Fluids
In laboratories, researchers frequently need to add reagents drop by drop or run long-term experiments with stable flow. In medical diagnostics or food production, even tiny variations in volume can affect results or product quality. Industrial users often deal with aggressive chemicals or need to integrate pumps into automated lines.
Key pain points I hear about include:
- Difficulty achieving fine speed adjustments without overshooting
- Pumps that are hard to control remotely or with timing functions
- Forgetting settings after power cycles
- Limited flexibility when flow rates vary between experiments or batches
- Concerns about long-term reliability and motor lifespan
A good peristaltic pump should help solve these issues rather than add to them.
What Experienced Users Look For
From talking with lab technicians and engineers, here are the features that tend to make daily work smoother:
- Smooth speed control from very low to reasonably high rpm, with clear 0.1 rpm steps
- Easy-to-read display that shows both speed and actual flow at the same time
- Ability to switch between manual operation, external signals, and timed runs without complicated menus
- Support for common control inputs like foot switches or analog signals (0-5V, 0-10V, 4-20mA)
- Simple button interface that remembers your last settings even after power is cut
- Option to swap pump heads when your flow needs change
- A durable motor that can run for thousands of hours without issues
- Decent protection against dust and moisture in typical lab or workshop environments
These practical elements often separate a pump you enjoy using from one that sits on the shelf.
Technical Details Worth Checking
When comparing peristaltic pumps, it helps to have a clear reference of typical specifications. Here’s a straightforward breakdown:
English Version
| Parameter | Specification |
|---|---|
| Speed Range | 0 ~ 300.0 rpm |
| Speed Resolution | 0.1 rpm |
| Outlet Pressure | ≤ 0.17 MPa |
| Control Method | Touch membrane buttons |
| Main Functions | Internal control, External control, Timing |
| External Control | Foot switch, 0~5V, 0~10V, 4~20mA |
| Display | 4-digit LED display |
| Power Supply | AC 100~240V, 50/60Hz, 1.0A |
| Operating Environment | 0~60°C, < 85% RH |
| Motor Type | Stepper motor drive |
| Motor Life | 6000 ~ 20,000 hours |
| Protection Rating | IP31 |
| Maximum Flow Rate | Up to 930 ml/min (depending on pump head) |
Pump Head Options That Offer Flexibility
Different tasks require different flow rates. Many users appreciate having several pump head choices so they don’t need to buy multiple machines:
- One head supports 0.013~279 ml/min
- Another reaches 0.047~570 ml/min
- Others cover 0.015~565 ml/min, 0.082~805 ml/min, and 0.02~800 ml/min
This range lets you handle micro-dosing in research as well as larger transfers in production without switching equipment.
Real-World Application Thoughts
In practice, these pumps see use in chemistry labs for accurate reagent addition, in diagnostic equipment for controlled sample processing, in food lines for clean additive dosing, and in environmental testing for consistent sampling. The ability to set timed runs and accept external signals makes them helpful for both standalone experiments and integrated automation.
Final Tips for Buyers
Before purchasing any laboratory peristaltic pump or timed dispensing pump, ask yourself:
- What is my typical flow range and how much precision do I need?
- Will I use it manually most of the time or integrate it with other devices?
- How important is ease of use and setting retention after power failures?
- What is the expected daily operating time?
Taking time to match these needs with the right specifications can save a lot of frustration later.
Have you struggled with fluid dosing in your work? What features matter most to you in a peristaltic pump? Share your thoughts in the comments — it’s always interesting to hear real experiences from the community.
